DCS240

12.8T Data Center Switch

AS9726-32DB
32 x 400G QSFP56-DD switch ports with Trident 4.
Cost-effective, open network switch for data center fabric


 Front to Back / Back to Front Airflow     400G High Bandwidth
 400G ZR/ZR+ Transceiver (max 24W)    24W per Transceiver on Upper 16 Ports
 14W per Transceiver on Lower 16 Ports Resiliancy


Overview

The Edgecore DCS240 is a top of rack or spine switch for high-performance data centers. The switch provides line-rate L2 and L3 switching across the 32 x QSFP56-DD ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 2 x 200GbE, 4 x 100 GbE, or 4 x 25 GbE. The DCS240 can be deployed as a spine switch supporting 100/400 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

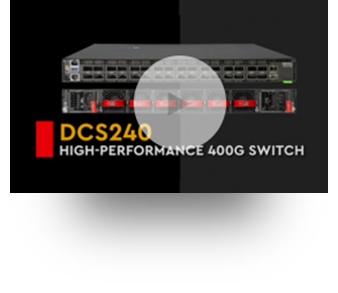

Video

Specs

Ports 32
Predominant Port Type 400GbE QSFP56-DD
High Availability Redundant Power Supply
Redundant Fans
Compatible Software Option Netscout - Packet Flow Switch
SONiC
Compatible Transceivers 40G QSFP+
100G QSFP28
400G QSFP-DD
400G QSFP-DD ZR ( DCO )
Compatible Cables 40G QSFP+ DAC
100G QSFP28 DAC
100G QSFP28 AOC
400G QSFP-DD DAC
400G QSFP-DD AOC
400G QSFP-DD to QSFP56 Breakout

Features

  • Cost-effective, open network switch for data center fabric.
  • QSFP56-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 2 x 200G GbE or 4 x 100 GbE.
    Upper 16 ports support up to 24 W per transceiver.
    Lower 16 ports support up to 14 W per transceiver.
  • Incorporates Broadcom Trident 4 switch series silicon for non-blocking line-rate performance.
  • 1 RU form factor.
  • Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.
  • All ports on front; PSUs and fans accessible from rear.
  • Hot-swappable, load-sharing, redundant 1500 W PSUs.
  • 5+1 redundant, hot-swappable fan modules.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
  • Compatible with Netscout Packet Flow Switch.
  • Compatible with SONiC open source network software.

Downloads

Category File Name Version Release Date File Size Download
Datasheet DCS240 (AS9726-32DB) DS R05 US 2023-01-02 1117.83 KB Download
User Manual DCS240 (AS9726-32DB) Quick Start Guide R02 US 2023-05-16 1121 KB Download
Certification DCS240 (AS9726-32DB)_CE_DoC US 2022-02-15 42.57 KB Download
Certification Edgecore RoHS 2.0 & REACH Declaration - DCS240 (AS9726-32DB) US 2023-03-17 1812.85 KB Download
Safety and Regulatory Information DCS240 (AS9726-32DB) Safety and Regulatory Information R02 US 2022-12-09 704.3 KB Download
