High Performance 400G Aggregation Router

AGR560

AS9947-36XKB
High-density 100/400G ports with Jericho2c+ and External TCAM
Aggregation Router/Provider Edge Router/Data Center Switch

Key Features

Audi
Server-Grade Xeon Family CPU
Audi
Multirole Capable
Audi
Carrier Grade Reliability
Audi
Supporting Hi-Powered Optics/XCVRs

Overview

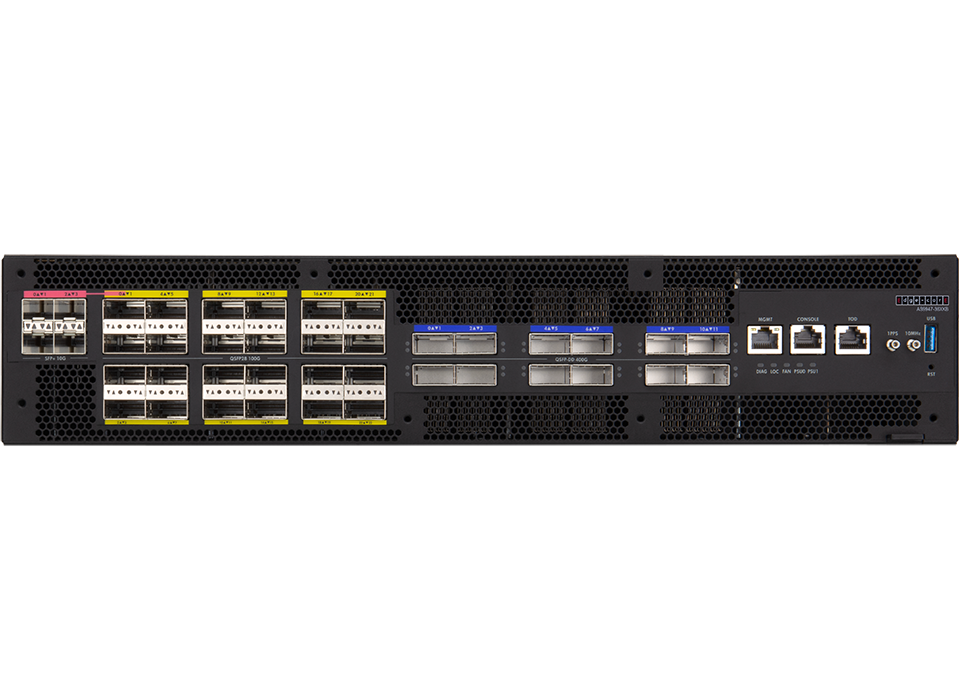

The AGR560 is a high-performance 400GbE aggregation router that consists of fixed 12 x 400G QSFP-DD (23 W) and 24 x 100G QSFP28 (6.5 W) network interfaces in a 2RU compact design that can be deployed as a standalone router.

The AGR560 is engineered with the Broadcom StrataDNX™ Jericho2c+ silicon leveraging external TCAMs. This platform targets use cases including 100GbE to 400GbE large aggregation router, Provider Edge (PE) router, or data center switch/router with high scalability.

The AGR560 is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System (NOS) soſtware, including the open-source option Open Network Linux(ONL), plus commercial NOS offerings.

Features

    • High-performance 100GbE to 400GbE router for telecom and data center applications
    • Disaggregated aggregation or PE router
    • Incorporates Broadcom StrataDNX™ Jericho2c+ with external TCAMs
    • Supports Synchronous Ethernet and IEEE 1588v2 PTP
    • Support of high powered coherent optical transceivers up to 23W
    • Application: Standalone 100GbE to 400GbE aggregation router

Specifications

Switch Ports 12 x 400GbE QSFP-DD (23 W) ports
24 x 100GbE QSFP28 (6.5 W) ports
4 x 10GbE SFP+ combo ports
Switch Silicon BCM88851 Jericho2C+
Processor Intel® Xeon® Octo-core 3.1GHz
BMC AST2600 with OpenBMC
Memory 2x32GB DDR4 SO-DIMM with ECC
Storage 480GB m.2 NVMe SSD with PLP/eLog
TPM TPM2.0 SPI
Rack 2 RU form factor
Timing and Sync 1PPS Port, SyncE, IEEE 1588v2 PTP

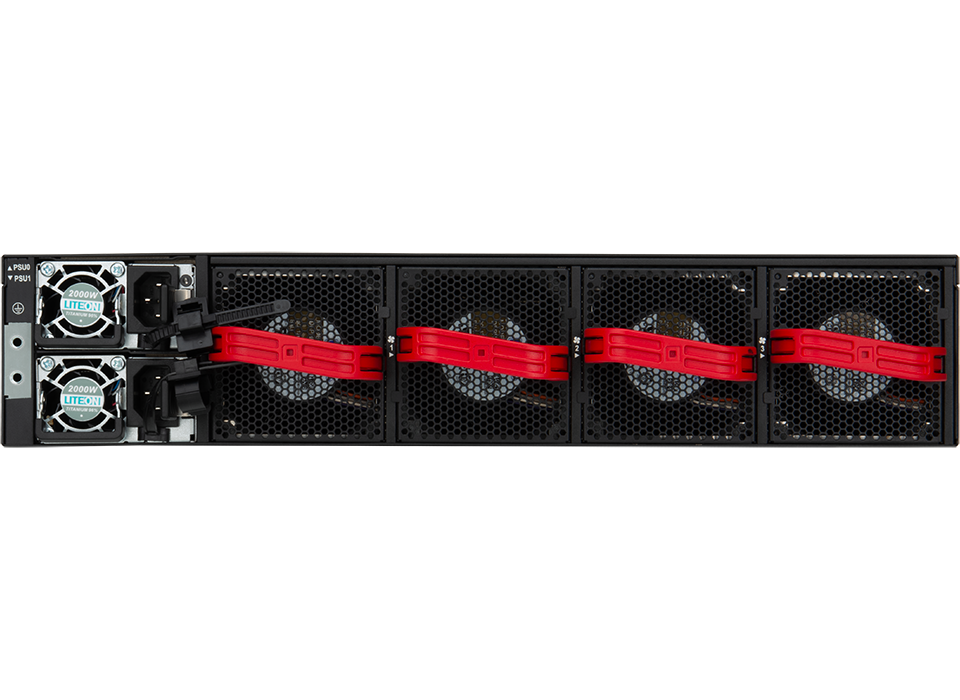

Fans Hot-swappable 3 + 1 redundant fans
Storage Temperature -40°C to 70°C
Operating Temperature 0° C ~ 45° C (Front-to-Back)

Compatible
Software Option

  • IP Infusion OcNOS

Compatible
Transceivers

  • 400G ZR

Downloads

AGR560(AS9947-36XKB) SRI R01

Safety and Regulatory Information  437KB

AGR560(AS9947-36XKB) Quick Start Guide R01

Quick Start Guide  536KB
