|  ET4202-LX

1G 10KM SFP TRANSCEIVER

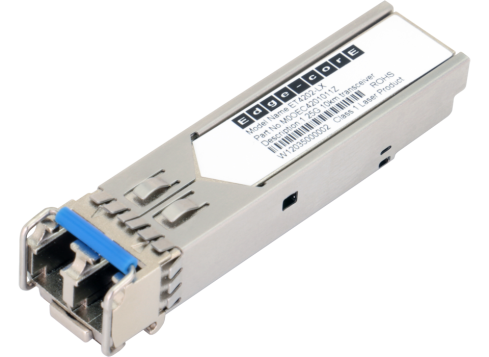

ET4202-LX

The ET4202-LX transceivers are high-performance, cost-effective modules supporting a data rate of 1.25 Gbps and a 10 km transmission distance with SMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.

Overview

The ET4202-LX transceivers are high-performance, cost-effective modules supporting a data rate of 1.25 Gbps and a 10 km transmission distance with SMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.

Features

  • Up to 1.25 Gbps data links
  • 1310 nm FP laser and PIN photo-detector
  • Up to 10 km on 9/125 μm SMF
  • Duplex LC receptacle optical interface compliant
  • Hot pluggable
  • RoHS compliant
  • Commercial operating temperature: 0°C to +70°C

Downloads

ET4202-LX DS R02

Datasheet  1,020 KB
