Service Provider  |  Aggregation Routers

  |  AGR130

800G AGGREGATION ROUTER

AGR130

AS5916-54XKS
48 x 10G SFP+, 6 x 100G QSFP28 with Qumran MX.
Carrier access / aggregation and ToR data center switch

Key Features

Audi
Rich Partner Ecosystem
Audi
Multirole Capable
Audi
Field Proven
Audi
Large TCAM

Overview

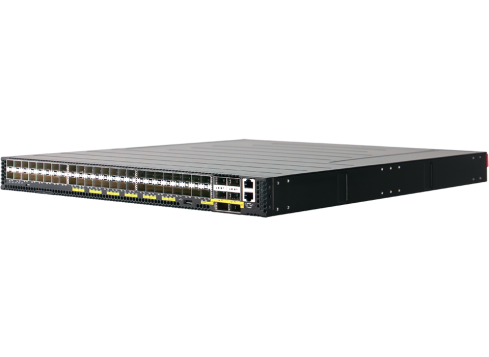

The Edgecore AGR130 is a Broadcom StrataDNX™ Qumran MX switch silicon based router capable of reaching line-rate at 800 Gbps for Layer 2 and Layer 3 switching. Equipped with BCM15K TCAM, the switch can be deployed either as a top-of-rack switch in a data center, or as a carrier access/aggregation switch, and edge router.

The AGR130 hardware comes with a high-availability design. Including a pair of redundant hot-swappable AC or 48 VDC PSUs. Fans are designed with 5+1 redundant fan modules with front-to-back airflow. The Edgecore AGR130 switch meets the high-performance, availability, and scalability requirements of cloud data centers and communication service providers.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • High performance data center top-of-rack and carrier access/aggregation switch or edge router.
  • 48 x SFP+ switch ports, supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).
  • 6 x 100G QSFP28 ports at front.
  • Support IEEE1588v2 and SyncE functions in hardware
  • Rack mountable in standard 19″ racks.

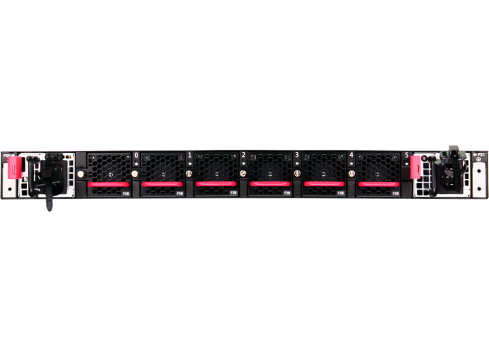

  • Hot-swappable, load sharing, redundant AC or -48 VDC PSUs.
  • Hot swappable 5+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible
Software Option

  • ADVA Ensemble Activator
  • CapGemini SDvAS
  • Casa systems
  • Cisco IOS XR
  • Exaware ExaNOS
  • Infinera CNOS
  • IP Infusion OcNOS
  • Open Network Linux(ONL)

  • RtBrick Full Stack OS

Downloads

AGR130 (AS5916-54XKS) DS R07

Datasheet  3 MB

AGR130 (AS5916-54XKS) Safety and Regulatory Information R03

Safety and Regulatory Information  934 KB

AGR130 (AS5916-54XKS) Quick Start Guide-R05

User Manual  3 MB
