Service Provider  |  Aggregation Routers

  |  AGR120

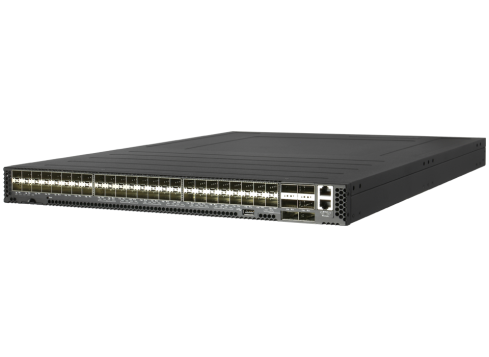

800G AGGREGATION ROUTER

AGR120

AS5916-54XM
48 x 10G SFP+, 6 x 100G QSFP28 with Qumran MX.
Carrier access / aggregation and ToR data center switch

Key Features

Audi
Rich Partner Ecosystem
Audi
Multirole Capable
Audi
Field Proven

Overview

The Edgecore AGR120 is a deep-packet buffer router optimized for carrier access and aggregation and data center applications. Based on Broadcom’s StrataDNX® Qumran MX™ ASIC, the device supports line-rate 800Gbps Layer 2 and Layer 3 functions and is equipped with a powerful Intel Xeon CPU. The AGR120 supports IEEE 802.1AE MACsec functionality delivering secure encrypted communications on the 10G downlink ports.

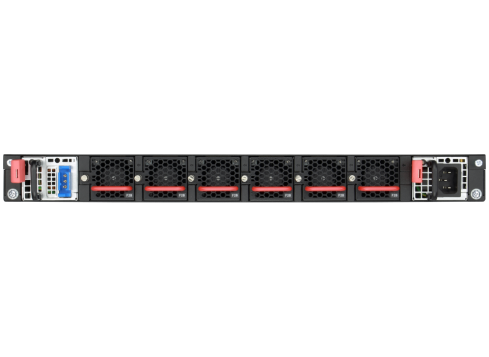

The AGR120 hardware comes with high-availability designs, including redundant, hot-swappable AC or -48 VDC PSUs. Fans are designed with 5+1 redundant fan modules with front-to-back or back-to-front airflow options. The Edgecore AGR120 meets the high-performance, availability, and scalability requirements of cloud data centers and communication service providers.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • High performance data center top-of-rack and carrier access/aggregation switch or edge router.

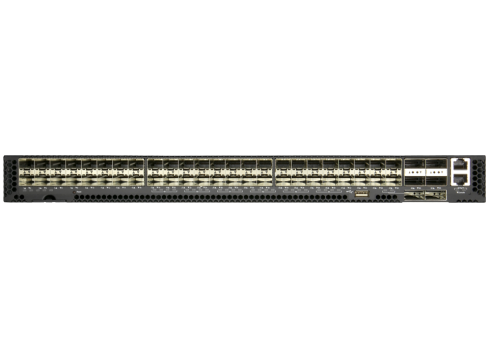

  • 48 x SFP+ switch ports, supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).
  • 6 x 100G QSFP28 or 6 x 40G QSFP ports at front.
  • Support for IEEE 802.1AE MACsec encryption.
  • Rack mountable in standard 19″ racks.
  • Hot-swappable, load sharing, redundant AC or 48 VDC PSUs.
  • Hot swappable 5+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports; USB storage port.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible
Software Option

  • ADVA Ensemble Activator
  • Open Network Linux(ONL)

  • IP Infusion OcNOS

Downloads

AGR120 (AS5916-54XM) DS R05

Datasheet  3 MB

AGR120 (AS5916-54XM) Safety and Regulatory Information R04

Safety and Regulatory Information  999 KB

AGR120 (AS5916-54XM) Quick Start Guide-R02

User Manual  1 MB
