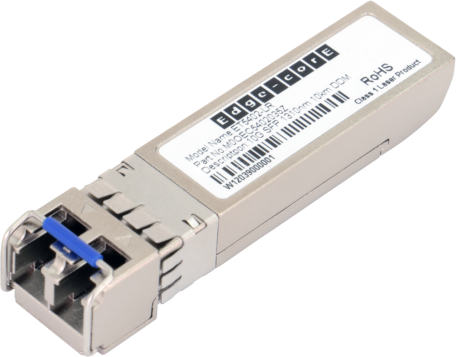

|  ET5402-LR

10G 10KM SFP+ TRANSCEIVER

ET5402-LR

The ET5402-LR transceivers are high-performance, cost-effective modules supporting a data rate of 10Gbps and a 10 km transmission distance with SMF. The transceivers are compatible with SFP+ Multi-Source Agreement (MSA) For further information, please refer to SFP MSA.

Overview

The ET5402-LR transceivers are high-performance, cost-effective modules supporting a data rate of 10Gbps and a 10 km transmission distance with SMF.

Features

  • Optical interface compliant to IEEE 802.3ae 10GBASE-LR/LW
  • Compliant with SFP+ MSA
  • Data Rate 10.3125 Gbps
  • 1310nm DFB TOSA and PIN ROSA
  • Applicable for 10 km SMF connection
  • LC duplex receptacle
  • Low power dissipation (<1W)
  • Hot Pluggable
  • All-metal housing for superior EMI performance
  • Built in digital diagnostic functions
  • RoHS compliant
  • Commercial operating temperature: 0°C to +70°C

Downloads

ET5402-LR DS R01

Datasheet  1 MB
