348G ENTERPRISE SWITCH

EPS202

AS4630-54PE
48 x 1G RJ45 PoE, 4 x 25G, 2 x 100G ports with Trident 3.
Open network switch for data center racks or enterprise environment

Audi
100G Interfaces
Audi
25G Interfaces
Audi
VxLAN NVGRE
Audi
Multirole Capable
Audi
Front-to-Back Airflow
Audi
High Port Density
Audi
30W/60W/90W+ PoE Support
Audi
Non-blocking Design

Overview

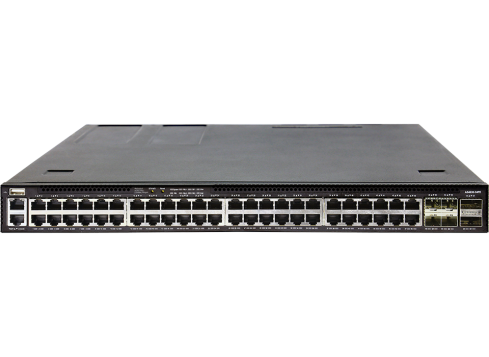

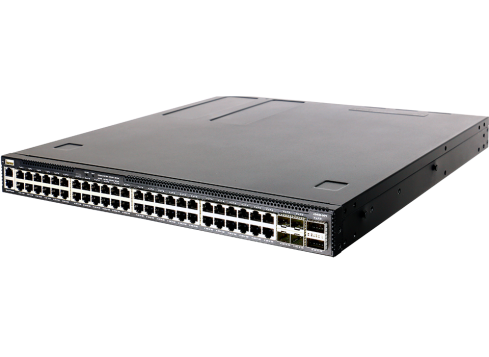

The Edgecore EPS202 is a high-performance Gigabit Ethernet Layer 3 switch featuring 54 ports; the EPS202 has 48 10/100/1000BASE-T ports, 4 x 25G SFP28 uplink ports, and 2 x 100G QSFP28 uplink ports ; plus the 48 10/100/1000BASE-T ports fully support IEEE 802.3at and IEEE 802.3bt Power-over-Ethernet (PoE).

The EPS202 is ideal as a data center top-of-rack switch, it includes redundant hot-swappable AC PSUs and port-to-power airflow. It is ideal for campus networking, with the EPS202 able to provide up to 90 Watts (Depends on the PoE power budge) of power per port to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing existing Cat. 6 cable infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • Cost-effective open networking switch with PoE capability ideal for Enterprise Access Networking and Campus Access Networking.
  • PoE capability able to power up enterprise, hospital, warehouse, retail environments interconnecting with security, Wi-Fi Access Points, IP Phone and IP Camera.

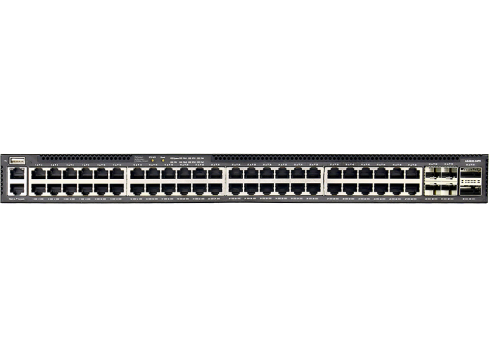

  • 48 x 10/100/1000BASE-T RJ-45 ports.
  • 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
  • 2 x100G QSFP28 stacking ports (Subject to NOS implementation).
  • Support TPM 1.2 with LPC interface.
  • Options to enable UEFI Secure Boot.
  • Full line-rate L2 or L3 forwarding and switching.

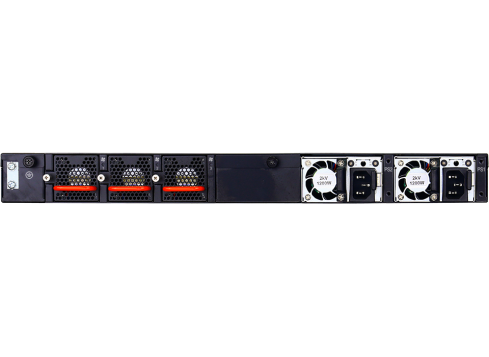

  • Hot-swappable, load-sharing, redundant AC PSUs.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Compatible
Software Option

  • Arrcus – ArcOS

  • BISDN Linux

  • Pica8 – PicOS

  • SONiC

Compatible
Transceivers

  • 10G SFP

  • 25G SFP28

  • 40G QSFP+
  • 100G QSFP28

Compatible
Cables

  • 10G SFP+ DAC

  • 10G SFP+ AOC

  • 25G SFP28 DAC

  • 25G SFP28 AOC

  • 40G QSFP+ DAC
  • 40G QSFP+ AOC

  • 100G QSFP28 DAC
  • 100G QSFP28 AOC
  • 100G DAC QSFP28 to SFP28 Breakout

  • 100G AOC QSFP28 to SFP28 Breakout

Downloads

EPS202 (AS4630-54PE) Quick Start Guide R04

User Manual  940 KB

EPS202 (AS4630-54PE) DS R08

Datasheet  1 MB

EPS202 (AS4630-54PE) Safety and Regulatory Information R02

Safety and Regulatory Information  743 KB
