  |  AIS800-32D

25.6T AI SWITCH

AIS800-32D

32 x 800G QSFP-DD800 switch ports with Tomahawk 5
High-performance, low latency switch for high-performance data centers
Up to 30W power budget per port

Audi
AI/ML use case
Audi
Low Latency
Audi
Transceiver (max 30W)
Audi
High Radix
Audi
End-to-end congestion control
Audi
Dynamic Load Balancing

Overview

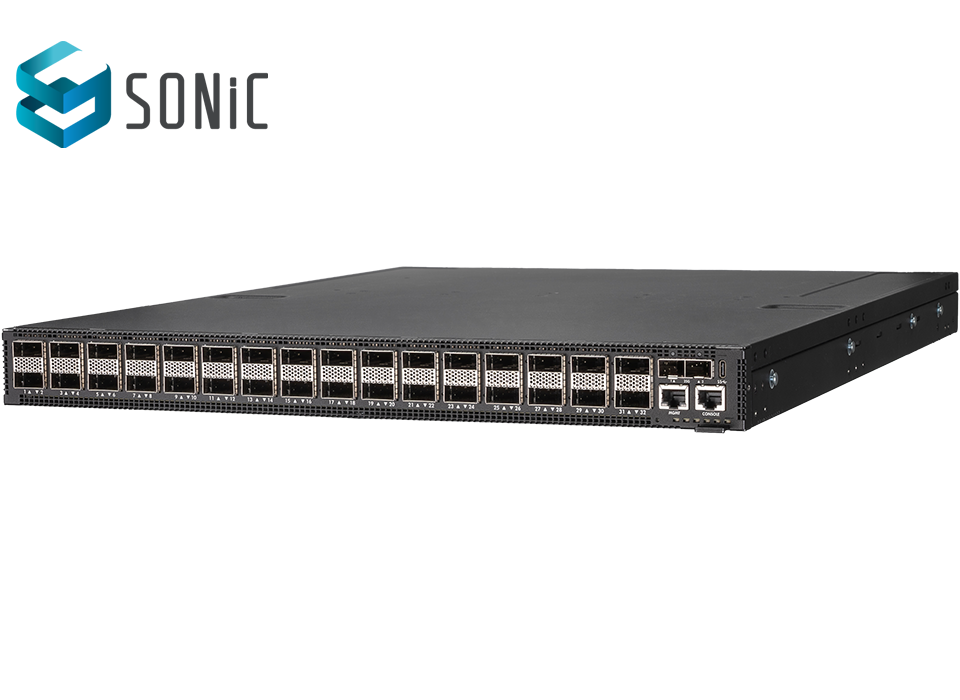

The Edgecore AIS800-32D is a high-performance, low latency switch for high-performance data centers.

Application Scenarios:

Features

  • QSFP-DD800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE.
  • QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
  • Up to 30W power budget per QSFP-DD800 port.
  • Incorporates Broadcom Tomahawk 5 switch series silicon.
    • Highest Radix: Up to 160 logical interfaces on a single chip, low latency
    • Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB)
    • Advanced shared buffering
    • Programmable in-band telemetry
    • Supports end-to-end congestion control
    • Power efficient due to a monolithic 5nm die
    • Hardware-based link failover for network resiliency and reduced job completion time
    • Support for SRv6
    • Support for VxLAN RIOT
  • BMC module with serial-over-LAN support
  • (Optional) SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel
  • Contains e-fuses to protect transceivers and internal components
  • 1 RU form factor
  • Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU

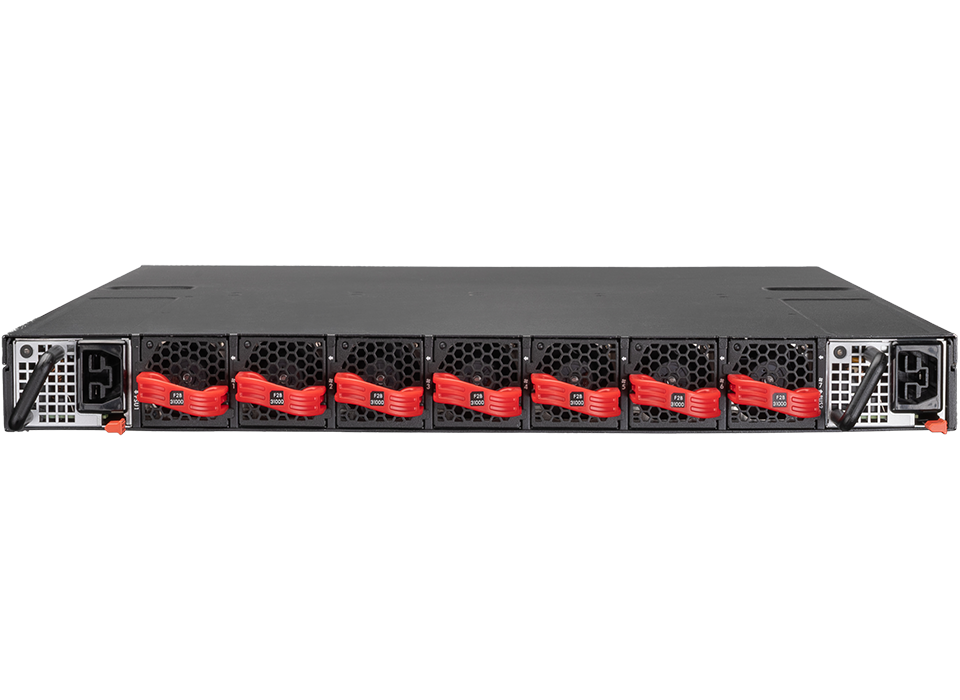

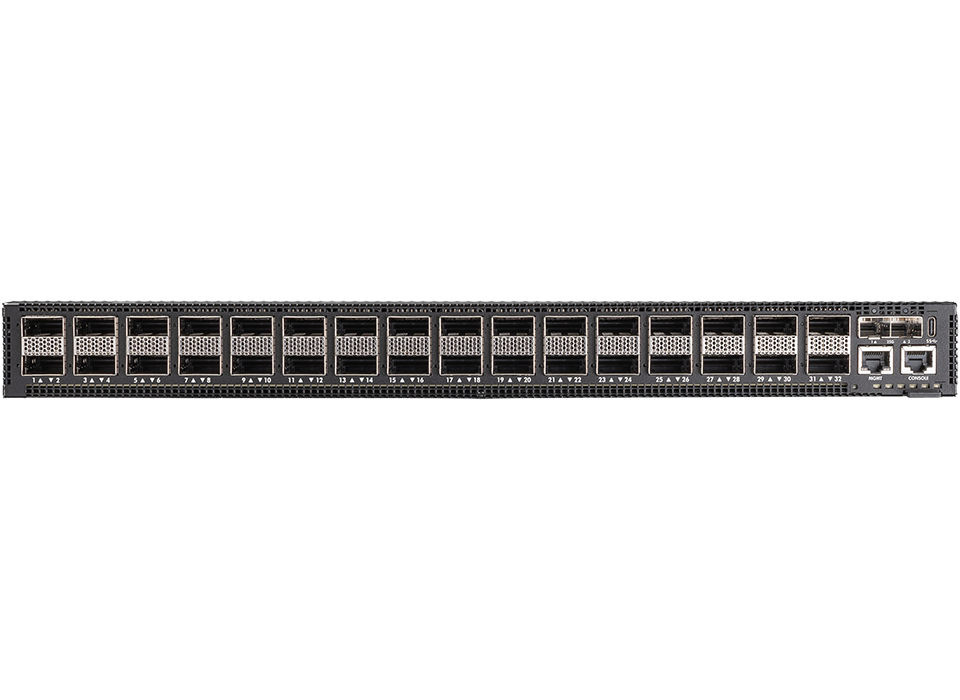

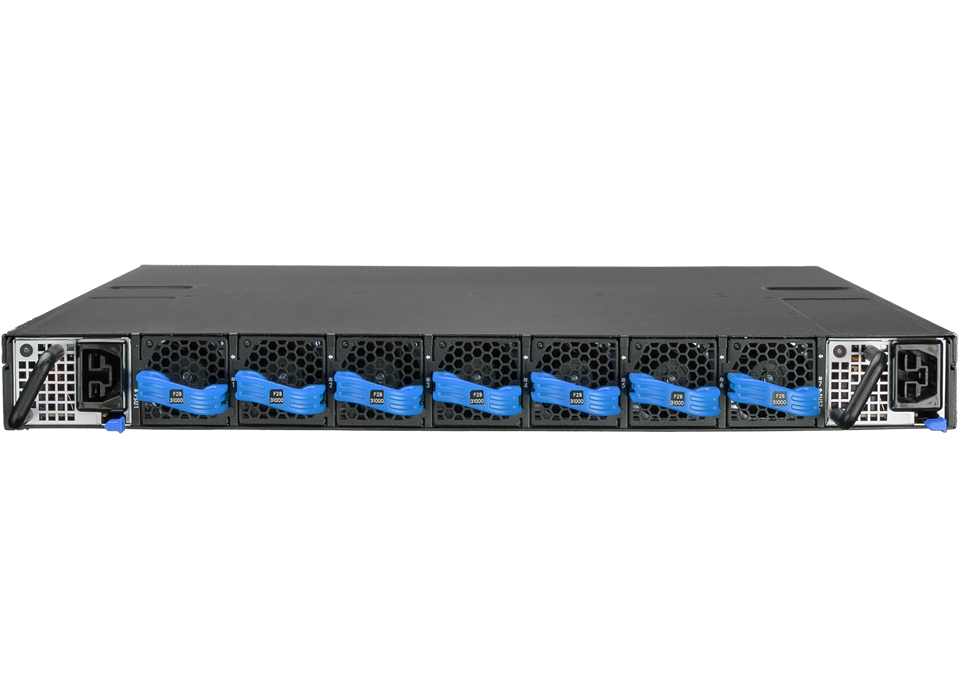

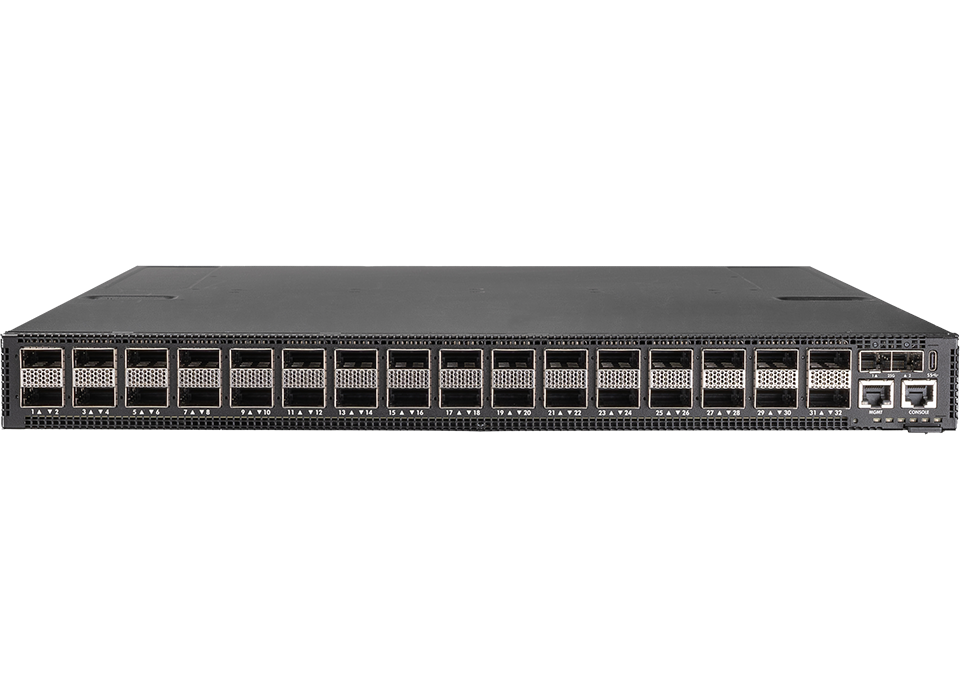

  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant 2400 W AC/DC PSUs
  • 7 Hot-swappable fan modules with 6+1 redundant fans
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings

Specifications

Switch Ports 32 x QSFP-DD800 800GbE
Switch Silicon BCM78902 Tomahawk 5
Processor Intel® Xeon® Quad-Core 2.2 GHz
BMC AST2620 with OpenBMC secured by AST1060 Root of Trust
SPI Flash 64MB x 2
Memory 32GB DDR4 SO-DIMM with ECC
Storage 240GB m.2 2280 NVMe SSD
TPM TPM2.0 SPI
Rack 1 RU form factor
Timing and Sync (Optional) 1PPS Port, 10 MHz port, ToD port, SyncE, IEEE 1588v2 PTP
Fans 7 Hot-swappable fan modules with 6+1 redundant fans
Storage Temperature -40°C to 70°C
Operating Temperature 0° C ~ 40° C (Front-to-Back)
0° C ~ 35° C (Back-to-Front)

Compatible
Software Option

  • SONiC

Compatible
Transceivers

  • 800G DR8 LPO

  • 800G OSFP 2xDR4

  • 800G OSFP 2xFR4
  • 800G OSFP 2xSR4
  • 800G ZR/ZR+

  • 800G OSFP SR8
  • 400G OSFP DR4
  • 400G OSFP SR8
  • 400G ZR/ZR+

Compatible
Cables
