|  ET5402-DAC-xM

1M, 3M, 5M 10GBPS DIRECT ATTACH CABLE

ET5402-DAC-xM

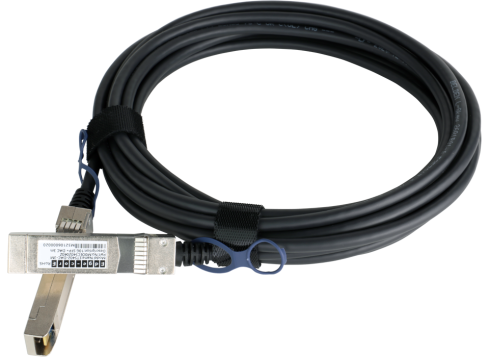

The ET5402-DAC-xM is a 1-5m short passive copper direct attach cable with one SFP+ to one SFP+ 10G connectors. The SFP+ cable assemblies are high-performance, cost-effective I/O solutions for 10G Ethernet and Fibre Channel applications.

Overview

The ET5402-DAC-xM is a 1-5m short passive copper direct attach cable with one SFP+ to one SFP+ 10G connectors. The SFP+ cable assemblies are high-performance, cost-effective I/O solutions for 10G Ethernet and Fibre Channel applications. The 10G copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.

Features

  • Support for data rates up to 10 Gbps (ET5402 series)
  • Compliant with SFP+(10G)  MSA specifications
  • All-metal housing for superior EMI performance
  • EEPROM for cable signature and system communications
  • 26 AWG to 30 AWG cable sizes available
  • Temperature Range: 0 ~70 °C
  • RoHS compliant

Downloads

ET5402-DAC DS R01

Datasheet  7 MB
