|  ET7302-DAC-xM

1M, 3M, 5M 25GBPS DIRECT ATTACH CABLE

ET7302-DAC-xM

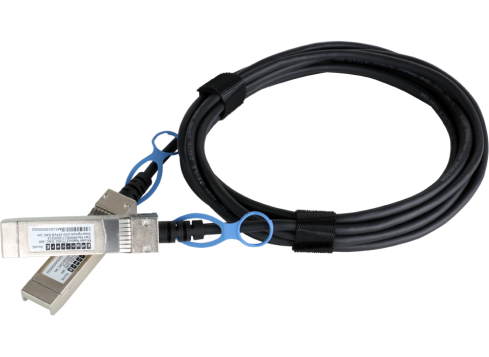

The ET7302-DAC-xM is a 1-5m short passive copper direct attach cable with one SFP28 to one SFP28 25G connectors. The SFP28 cable assemblies are high-performance, cost-effective I/O solutions for 25G Ethernet and Fibre Channel applications.

Overview

The ET7302-DAC-xM is a 1-5m short passive copper direct attach cable with one SFP28 to one SFP28 25G connectors. The SFP28 cable assemblies are high-performance, cost-effective I/O solutions for 25G Ethernet and Fibre Channel applications. The 25G copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.

Features

  • Support for data rates up to 25 Gbps (ET7302 series)
  • Compliant with SFP28 (25G) MSA specifications
  • All-metal housing for superior EMI performance
  • EEPROM for cable signature and system communications
  • 26 AWG to 30 AWG cable sizes available
  • Temperature Range: 0~70 °C
  • RoHS compliant

Downloads

ET7302-DAC DS R01

Datasheet  7 MB
