Service Provider  |  Aggregation Routers

  |  AGR110

800G AGGREGATION ROUTER

AGR110

AS5916-54XL
48 x 1G/10G SFP+, 6 x 100G QSFP28 with Qumran MX.
Carrier access / aggregation and ToR data center switch

Key Features

Audi
Rich Partner Ecosystem
Audi
Multirole Capable
Audi
Field Proven

Overview

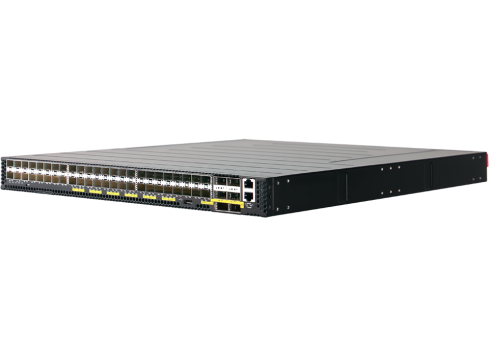

The Edgecore AGR110 is based on Broadcom’s StrataDNX® Qumran MX™ switch silicon capable of line-rate 800 Gbps Layer 2 and Layer 3 switching. The switch can be deployed either as a top-of-rack switch in the data center, or as a carrier access/aggregation switch.

The AGR110 hardware comes with high-availability design features, including redundant, hot-swappable AC or 48VDC PSUs, and 5+1 redundant fan modules with front-to-back airflow. The Edgecore AGR110 switch meets the high-performance, availability, and scalability requirements of cloud data centers and communication service providers.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • High performance, data center top-of-rack and carrier access/aggregation switch.
  • 48 x SFP+ switch ports, supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX)
  • 6 x 100G QSFP28 ports at front.
  • Support IEEE1588v2 and SyncE functions in hardware.
  • Rack mountable in standard 19″ racks.
  • Hot-swappable, load sharing, redundant AC or 48 VDC PSU power input options.

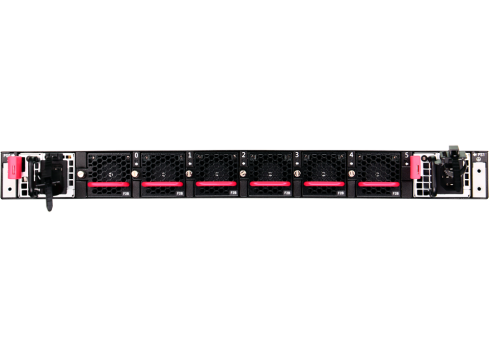

  • Hot swappable 5+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible
Software Option

  • DriveNets DNOS
  • Open Network Linux(ONL)

  • RtBrick Full Stack OS

Downloads

AGR110 (AS5916-54XL) DS R06

Datasheet  3 MB

AGR110 (AS5916-54XL) Safety and Regulatory Information R03

Safety and Regulatory Information  934 KB

AGR110 (AS5916-54XL) Quick Start Guide-R03

User Manual  3 MB
