AI / ML | AI Switch

  |  AIS800-64O



64 x OSFP800 switch ports with Tomahawk 5
High-performance, low-latency switch for high-performance data centers

AI/ML use case
Low Latency
Transceiver (max 30W)
High Radix
End-to-end congestion control
Dynamic Load Balancing

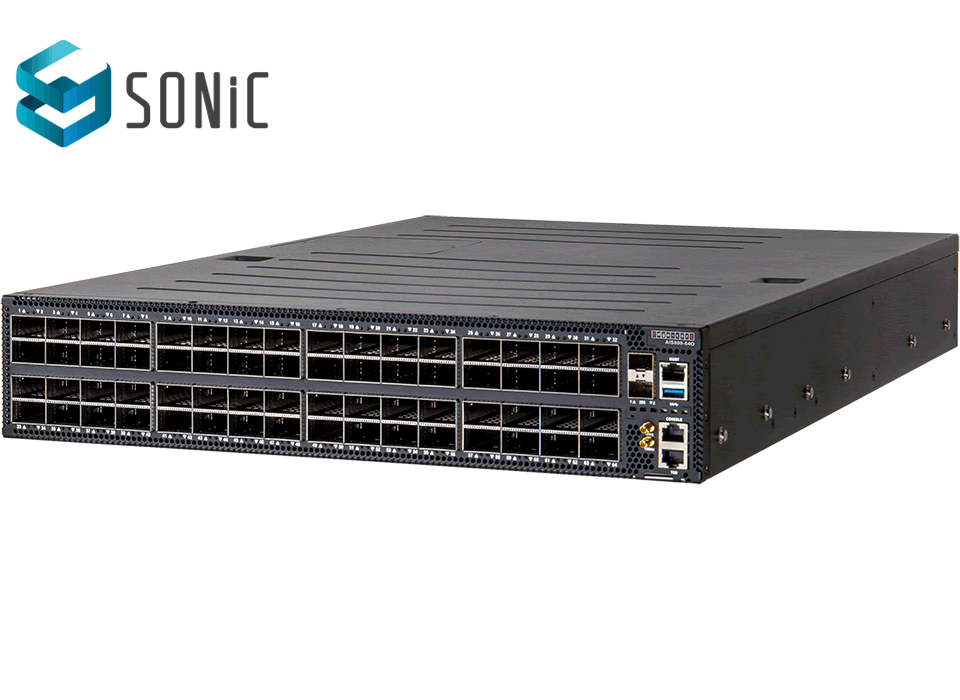

The Edgecore AIS800-64O is a high-performance, low-latency switch for high-performance data centers.

Application Scenarios:

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

51.2 Tbps

Bandwidth In a Single Device

64x800G or 128x400G

Configuration Through Transceiver Type


Throughput Increased Compared to TH4


Process Technology


  • OSFP800 or QSFP-DD800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE.
  • OSFP800 or QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
  • Up to 30W power budget per QSFP800 and QSFP-DD800 port.
  • Incorporates Broadcom Tomahawk 5 switch series silicon.
    • Highest Radix: Up to 320 logical ports on a single chip, low latency
    • Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB)
    • Advanced shared buffering
    • Programmable in-band telemetry
    • Supports end-to-end congestion control
    • Power efficient due to a monolithic 5nm die
    • Hardware-based link failover for network resiliency and reduced job completion time
    • Support for SRv6
    • Support for VxLAN RIOT
  • BMC module with serial-over-LAN support
  • SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel
  • Contains e-fuses to protect transceivers and internal components
  • 2 RU form factor
  • Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU

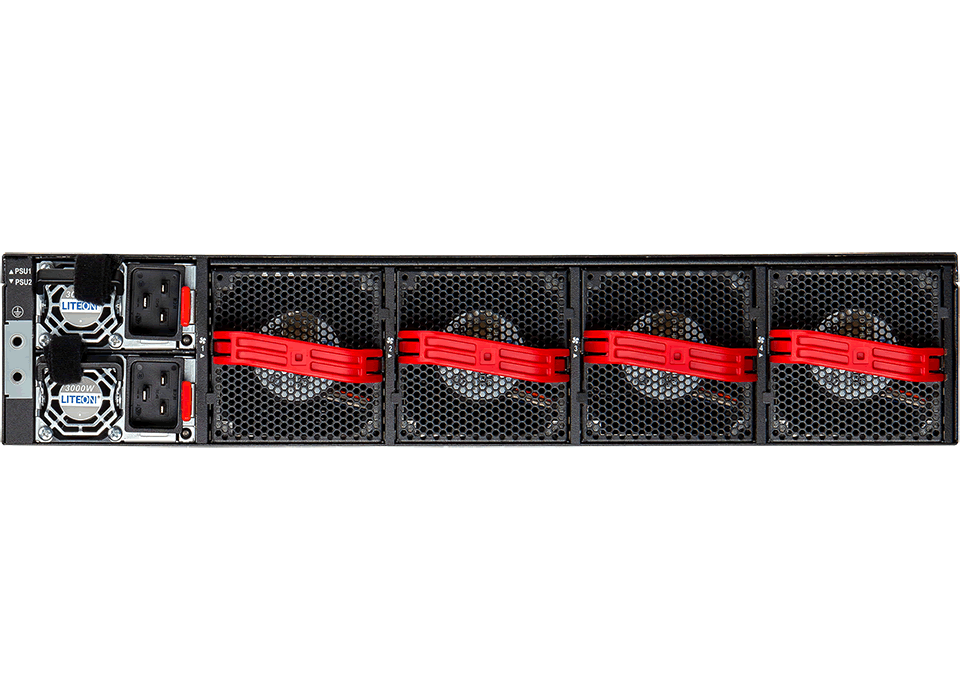

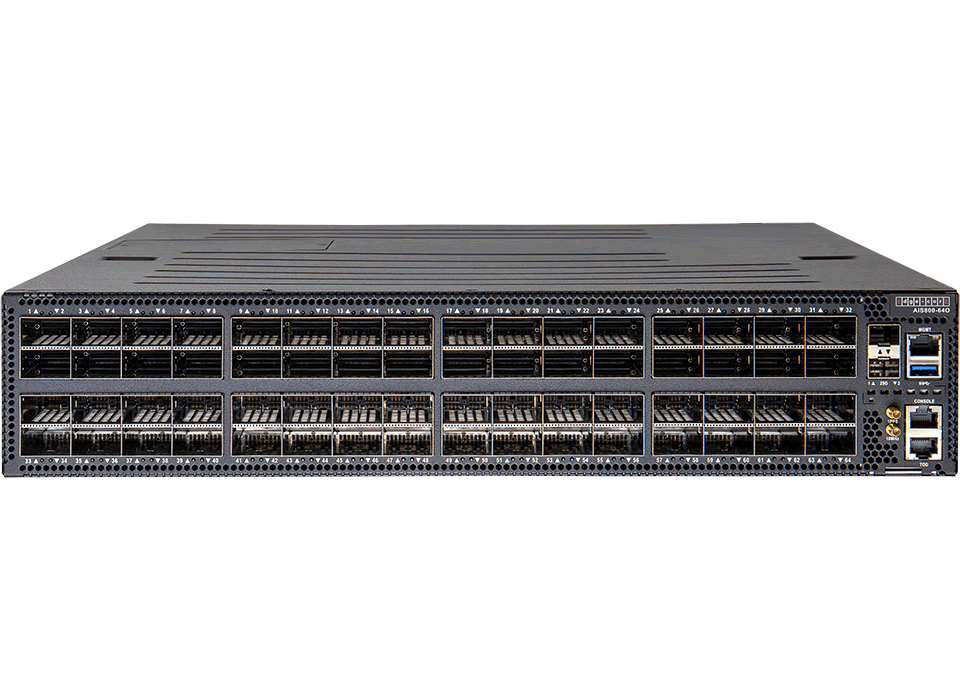

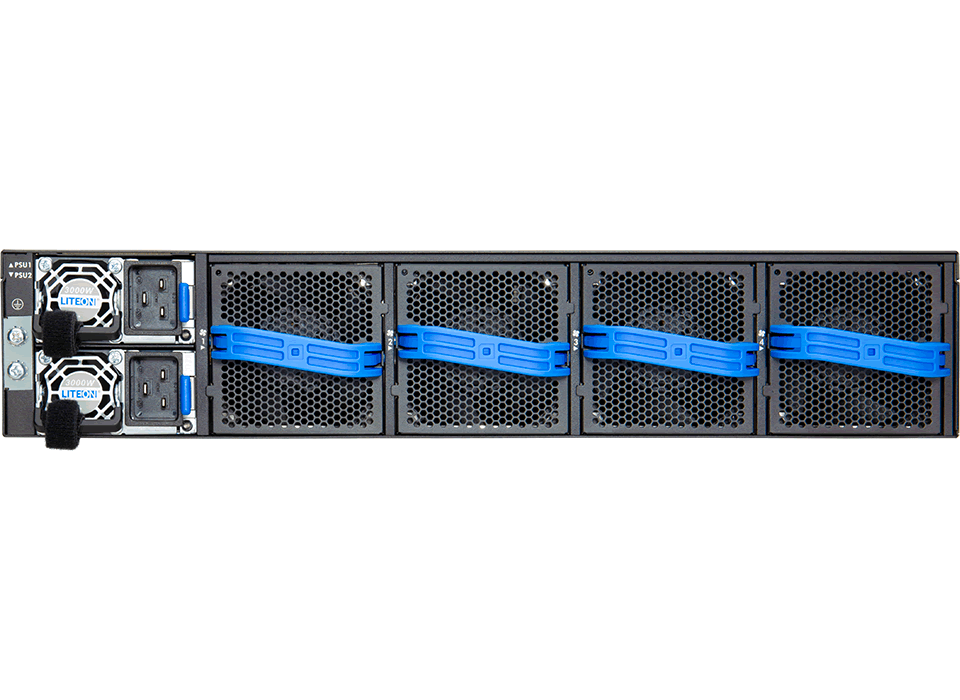

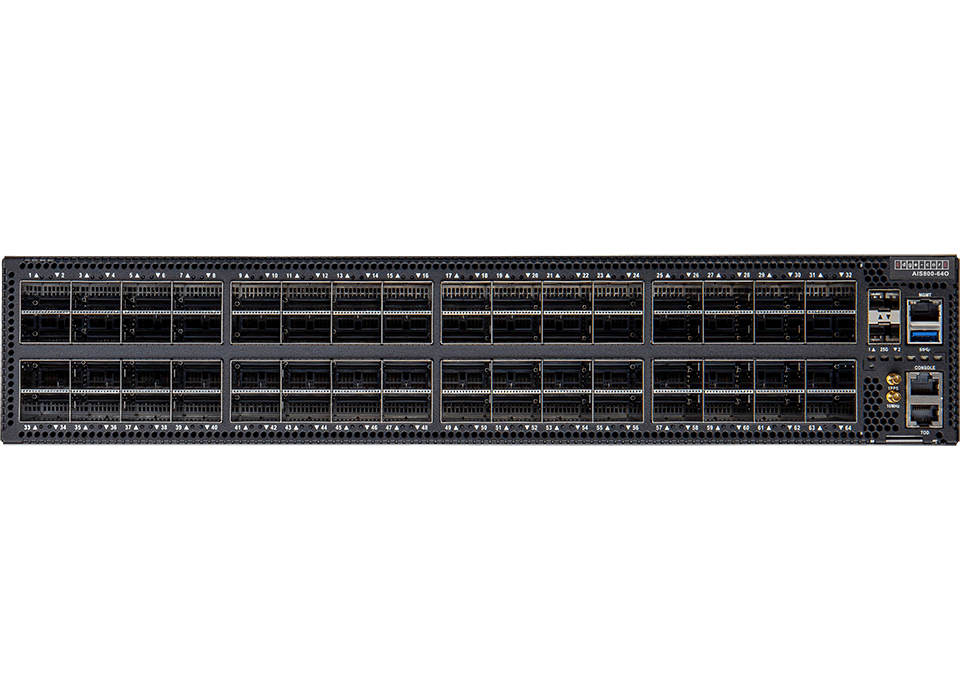

  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant 3000 W AC/DC PSUs
  • 4 Hot-swappable fan modules with 7+1 redundant fans
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings

Software Option

  • SONiC


  • 800G DR8 LPO

  • 800G OSFP 2xDR4

  • 800G OSFP 2xFR4
  • 800G OSFP 2xSR4
  • 800G ZR/ZR+

  • 800G OSFP SR8
  • 400G OSFP DR4
  • 400G OSFP SR8
  • 400G ZR/ZR+



    AIS800 series DS R02

    543 KB


    Safety and Regulatory Information  573.35 KB


    User Manual  4 MB
