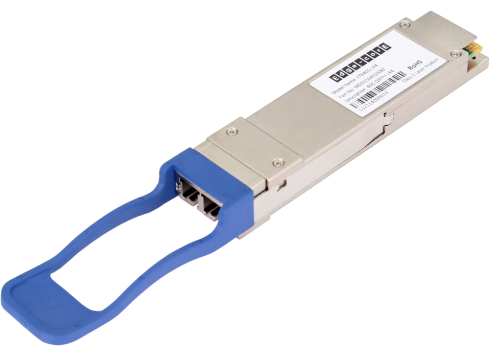

|  ET6401-LR4

40G 10KM QSFP+ TRANSCEIVER

ET6401-LR4

The ET6401-LR4 QSFP+ transceiver is designed for 40 Gb/s links over single mode fiber. The transceiver integrates a four-channel CWDM DFB laser and multiplexes them into a single channel for 40 Gb/s optical transmission; in receiver side, the module de-multiplexes the 40 Gb/s optical signal into four CWDM channels. Each channel operates at 10.3125 Gb/s, and the module can operate at 40 Gb/s up to 10 km using 9/125 um SMF. The transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4.

Overview

The ET6401-LR4 QSFP+ transceiver is designed for 40 Gb/s links over single mode fiber. The transceiver integrates a four-channel CWDM DFB laser and multiplexes them into a single channel for 40 Gb/s optical transmission; in receiver side, the module de-multiplexes the 40 Gb/s optical signal into four CWDM channels. Each channel operates at 10.3125 Gb/s, and the module can operate at 40 Gb/s up to 10 km using 9/125 um SMF. The transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4.

Features

  • Compliant with IEEE Std 802.3ba, 40G Ethernet LR4
  • Compliant with QSFP+ MSA
  • Management interface specifications per SFF-8436
  • 4 channels CWDM DFB
  • 4 channels PIN photo detector array
  • Up to 10.3 Gb/s per channel data links
  • Single +3.3 V power supply
  • Class 1 laser safety certified
  • Commercial Operating Temperature: 0°C to +70°C
  • Up to 10 km on SMF
  • RoHS Compliant

Downloads

ET6401-LR4 DS R02

Datasheet  631 KB
