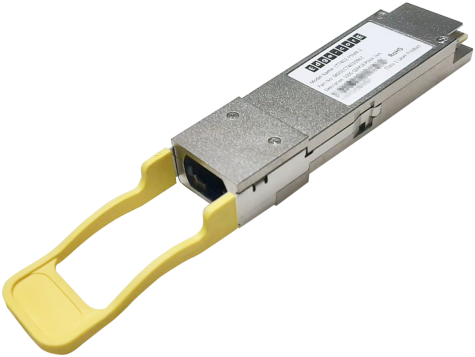

|  ET7402-PSM4-2

100G 2KM QSFP28 PSM4 TRANSCEIVER

ET7402-PSM4-2

Edgecore’s ET7402-PSM2-2 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links of up to 2 km of single mode fiber.

Overview

Edgecore’s ET7402-PSM2-2 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links of up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA and portions of IEEE P802.3bm . Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s.

Features

  • 4 parallel lanes design
  • Compliant with QSFP28 MSA
  • Compliant with IEEE 802.3bm 100GBASE PSM IR4
  • 4-channel PIN photo detector
  • Up to 25.78125Gb/s per channel data links
  • Single +3.3 V power supply
  • Class 1 laser safety certified
  • Commercial operating temperature: -5°C to +70°C
  • Up to 2 km on SMF
  • MTP/MPO-12 (APC) connector
  • RoHS 6/6 Compliant

Downloads

ET7402-PSM4-2 Datasheet R01

Datasheet  1 MB
