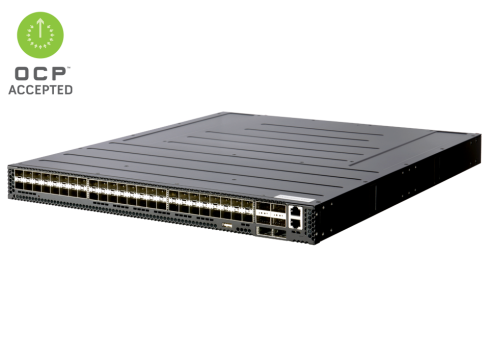

800G AGGREGATION ROUTER

AGR100

AS5912-54X
48 x 1G/10G SFP+, 6 x 100G QSFP28 with Qumran MX.
Carrier access / aggregation router and ToR data center switch

Key Features

Audi
Rich Partner Ecosystem
Audi
Multirole Capable
Audi
Field Proven

Overview

The Edgecore AGR100 router meets the high-performance, availability, and network-scaling requirements of cloud data centers and carrier access providers. The AGR100 provides switching at Layer 2 or Layer 3 across 48 x 10 GbE ports and 6 x 100 G uplinks. The switch can be deployed either as a top-of-rack switch, as part of a 100 GbE or 40 GbE distributed spine, forming a non-blocking folded-Clos data center fabric, or as a carrier access/aggregation router. This device is rack mountable in a standard 19 inch rack.

The AGR100 hardware provides high-availability features, including; redundant, hot-swappable AC or -48 VDC PSUs; fans with 5+1 redundant fan modules; and front-to-back or back-to-front airflow options.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • Cost-effective, data center top-of-rack switch and carrier access/aggregation router.
  • 48 x SFP+ ports, supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).

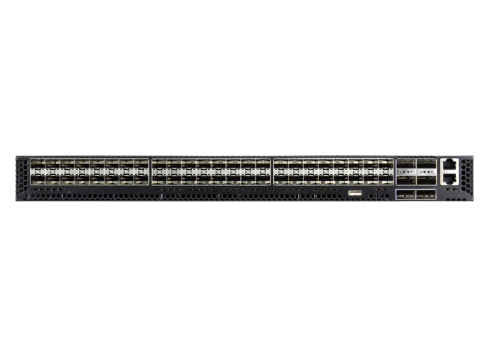

  • 6 x 100G QSFP28 ports at front
  • Rack mountable in standard 19″ racks.
  • Hot-swappable, load sharing, redundant AC or -48 VDC PSUs.

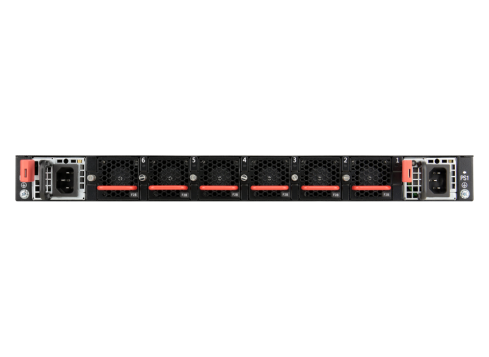

  • Hot swappable 5+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible
Software Option

  • Open Compute Project – Open Network Linux

  • CapGemini – SDvAS

  • CGS – COS

  • IP Infusion – OcNOS

  • Exaware ExaNOS
  • Infinera CNOS
  • IP Infusion OcNOS

Downloads

AGR100 (AS5912-54X) DS R20

Datasheet  3 MB

AGR100 (AS5912-54X) Safety and Regulatory Information R04

Safety and Regulatory Information  999 KB

AGR100 (AS5912-54X) Quick Start Guide-R02

User Manual  1 MB
