Cloud Data Center  |  Packet Optical

  |  AMX3200

3.2T Coherent Transponder and Muxponder

AMX3200

3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.

Audi
DCI Interconnect
Audi
Flexible Combination
Audi
Pluggable Design
Audi
Hot-swappable

Overview

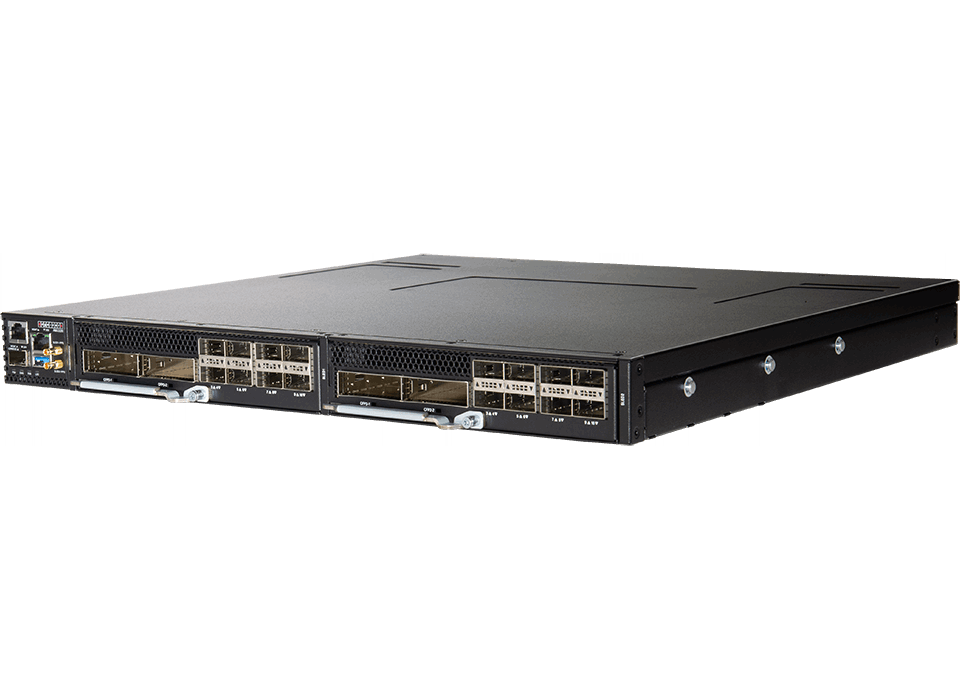

AMX3200 is a new-generation coherent transponder and muxponder with 3.2 Tbps switching capacity that is designed for building high-capacity optical transport networks.

AMX3200 is designed and built as a disaggregated system to offer flexibility with different NOS options in modular sled-based line modules.

AMX3200 is designed to expand Datacenter Interconnect (DCI), and service provider backhaul over the coherent-wavelength-supporting C-band channel in different applications based on CFP2-DCO specifications.

Features

  • 100G/200G/300G/400G high capacity for 1000km/2000km long-haul transmission

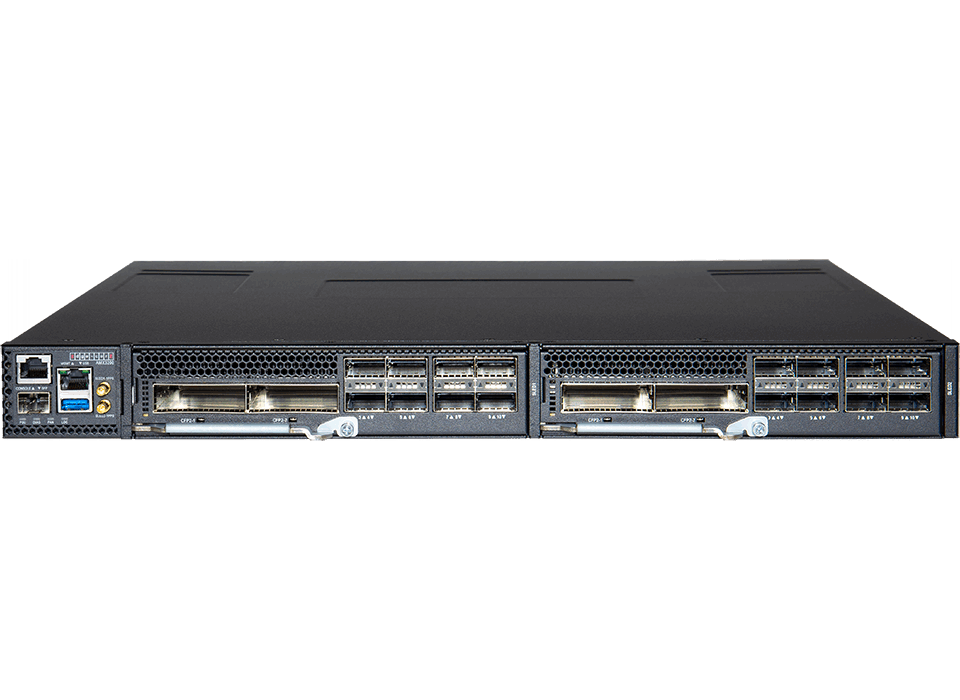

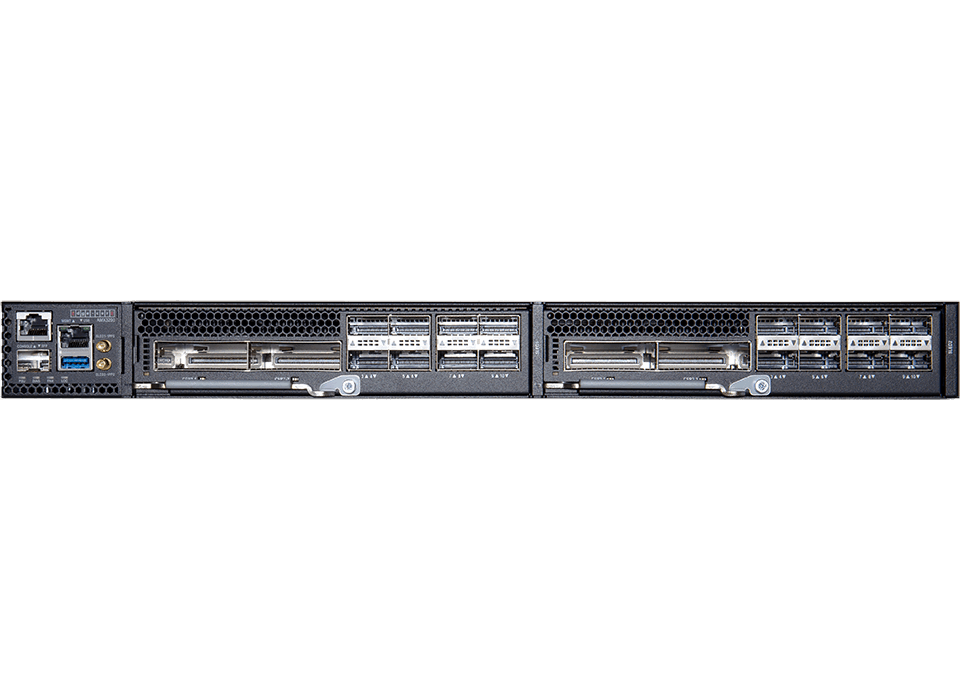

  • Dual front-panel modular sled design, each sled supports 8 x QSFP+/QSFP28 client interfaces and 2 x 400G (CFP2-DCO) line interfaces. AMX3200 is an upgrade with other types of interface sleds in the future, which enables smooth migration during capacity expansion.
  • Complies with OIF400ZR, OpenZR+, and OpenROADM industry standards
  • Supports 400G, 300G, 200G, and 100G optical line rates over modulation formats DP-16QAM, DP-8QAM, DP-QPSK, and dQPDK
  • 4 × 100G/200/300/400G discrete, pluggable network ports up to 16 × 100 GbE/OTU4 (QSFP28)
  • Modular 1RU sled design
  • Maximum 1.6 Tbps capacity per sled
  • Supports in-band management
  • Supports DCI, metro networks
  • Supports gearbox, re-timer/crosspoint/2:1 hitless mux

Specifications

Muxponder Ports 16 x QSFP28 ports, each port supports 1 x 40/100 GbE 2 x sleds for CFP2-DCO modules, supports 100G/200G/300G/400G
Switching Capacity 3.2 Tbps full duplex
Processor Intel® Atom® C Series C3508
SPI Flash 16MB x 2
Memory 8GB DDR4 SO-DIMM, support up to 16GB
Storage 128GB m.2 SSD
TPM TPM 2.0
PTP IEEE 1588v2, timings up to Class C and provides a PPS output
Management Ports 1 x RJ-45 RS232 console 1 x RJ-45 100/1000BASE-T management, 1 x 1G SFP management Micro-USB USB3.0 connector

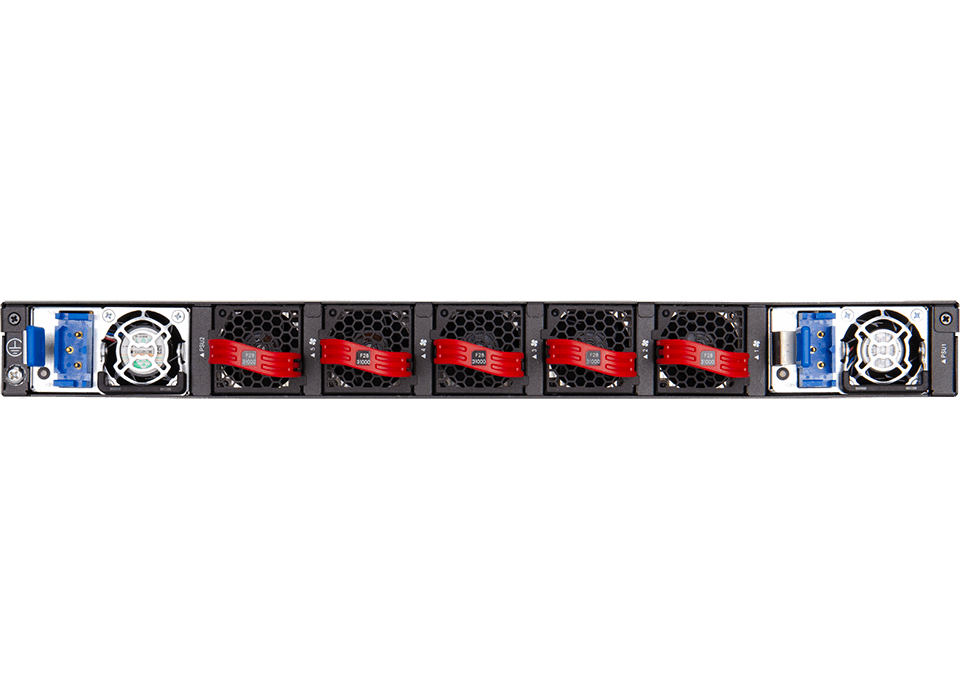

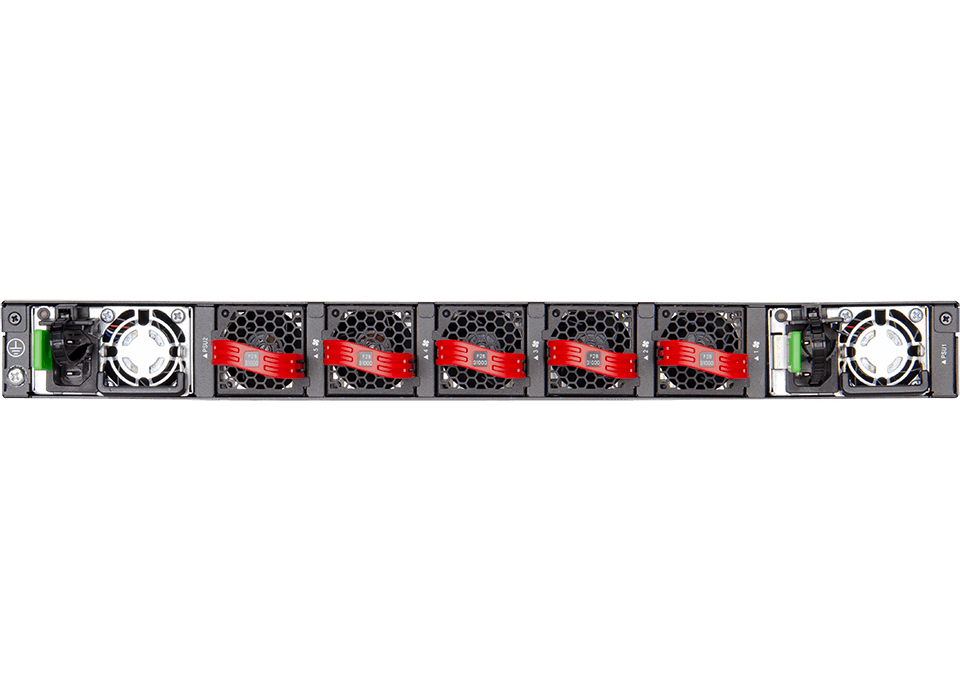

Power PSUs: 1+1 redundant, load-sharing, hot-swappable
Fans 4+1 fan modules
Operating Temperature 0°C to 45°C(32°F to 113°F)
Operating Humidity 5% to 95% (non-condensing)
Dimensions 438.4 mm x 430 mm x 43.5 mm
PSU capacity 1200 W (max system power consumption 850 W)
