|  ET7502-DAC-xM

1-2.5M 400 GBPS DIRECT ATTACH CABLE

ET7502-DAC-xM

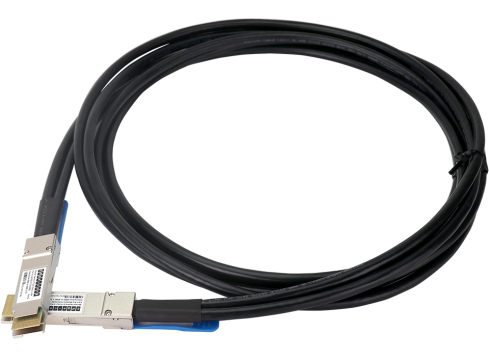

The ET7502-DAC-xM is a 1~2.5 m short passive copper direct attach cable with one QSFP-DD to one QSFP-DD 400G connectors.

Overview

The ET7502-DAC-xM is a 1~2.5 m short passive copper direct attach cable with one QSFP-DD to one QSFP-DD 400G connectors. The QSFP-DD DAC modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.

Features

  • Support data rates up to 400 Gbps
  • Compliant with compliance with QSFP-DD-MSA/SFF-8665/IEEE802.3bj/IEEE 802.3cd
  • EEPROM for cable signature and system communications
  • ET7502-DAC-xM (0-1M 30 AWG ,1-2.5M 28 AWG)
  • Temperature Range: 0~70°C
  • RoHS compliant

Downloads

ET7502-DAC-xM DS R02

Datasheet  2 MB
