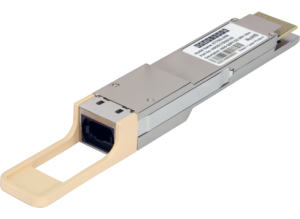

|  ET7502-SR8

400G QSFP-DD SR8 TRANSCEIVER

ET7502-SR8

Edgecore’s QSFP-DD SR8 transceiver module is designed for 400 Gigabit Ethernet links over 100m OM4 multimode fiber.

Overview

Edgecore’s QSFP-DD SR8 transceiver module is designed for 400 Gigabit Ethernet links over 100m OM4 multimode fiber. The module has 8 independent electrical input/output channels operating at 53.125 Gbps per channel over 850 nm wavelengths. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with QSFP-DD MSA.

Features

  • Single 3.3 V power supply
  • Power dissipation < 10 W
  • Up to 100 m over OM4 fiber
  • QSFP-DD MSA compliant
  • 8×26.5625 GBd (PAM4) electrical interface
  • MPO-16 connector (APC)
  • Commercial case temperature range of 0°C to 70°C
  • VCSEL transmitter
  • PIN and TIA array on the receiver side
  • I2C Interface with integrated Digital Diagnostic Monitoring
  • RoHS compliant (lead-free)

Downloads

ET7502-SR8 DS R01

Datasheet  630 KB
