Enterprise  |  L2 Switches

  |  ECS5550-54X

L2+/Lite L3 10G Ethernet Switch

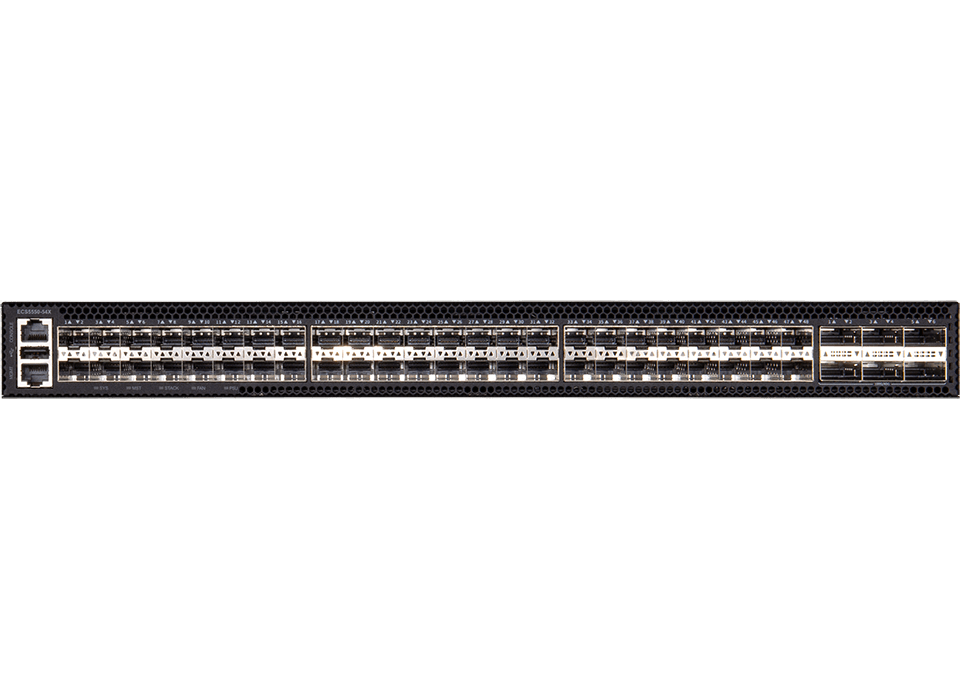

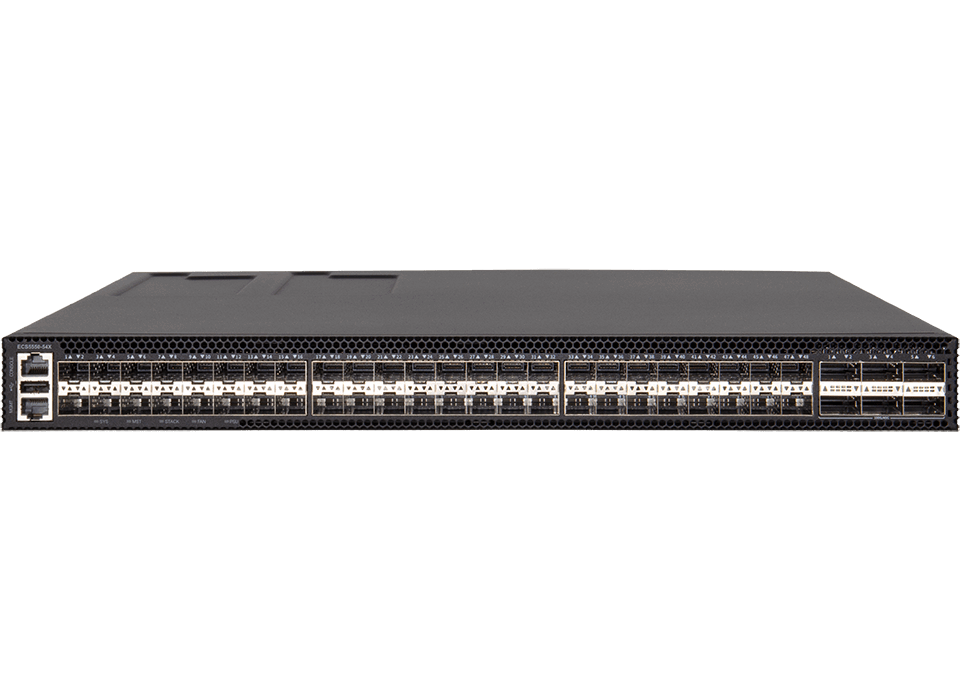

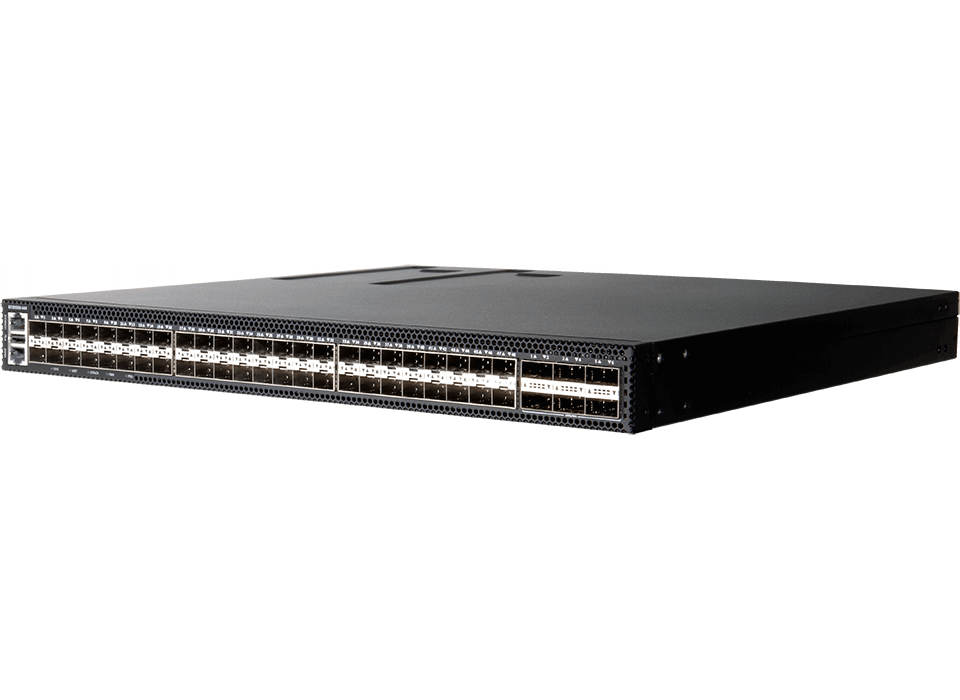

ECS5550-54X

ECS5550 series offers 24/48 10GbE SFP+ ports and 6 100GbE uplinks, ideal for carrier/enterprise aggregation or small data centers. It supports IPv6 management, security, multicast control, and advanced QoS, ensuring high availability and simple management.

Overview

The ECS5550 series consists of two switches with 24 or 48 10GbE SFP+ ports and 6 100GbE uplink ports. The switches are designed for carrier/enterprise aggregation or small data center top-of-rack. The ECS5550 series is an ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures without over-subscription.

The ECS5550 switches are packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to network aggregation, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services from home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements.

Features

  • Best price-performance 10 Gigabit Ethernet aggregation switch with 100G uplinks
  • Reliable and advanced metro Ethernet features
    • <50ms ERPSv2 (ITU-T G.8032), QinQ, Selective QinQ, VLAN translation, TrTCM, OAM (802.3ah)
  • Comprehensive and field-proven soſtware features for ISPs/carriers, providing broadband access, robust multicast IPTV services (IGMP/MLD Snooping, MVR)
  • Enhanced security: Port Security, DHCP Snooping, IP Source guard, DAI, DoS protection
  • Simple management: CLI, SNMPv1/v2/v3, intuitive web management
  • Complete Private MIB to fully control and monitor the switch via customer’s EMS
  • MLAG

Specifications

Switch Ports Multi-gig fiber ports, include 1G, 2.5G and 10G downlinks with 40G/100G uplinks; able to support XGSPON TIBIT OLT or ONU microplug on 10G SFP+ ports (max 24 ports for both models)
eMMC 8GB
Memory 4GB EEC
Rack 1 RU form factor

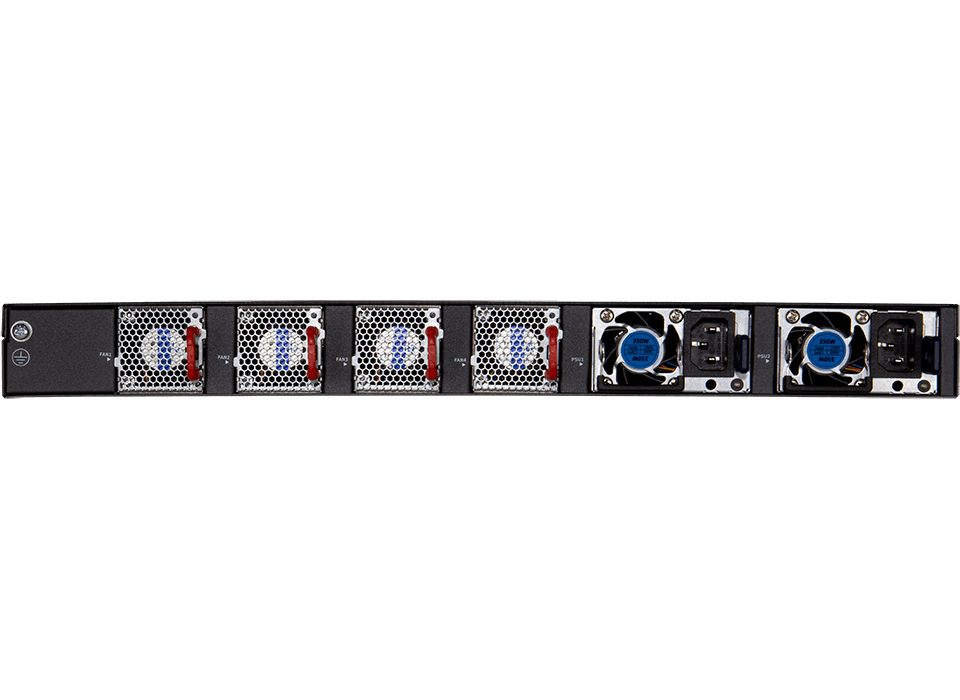

Fans 1 + 1 redundant hot-swappable fans
Power 1+1 redundant hot-swappable PSU
Operating Temperature -5°C to 50°C
Power Draw 230W (maximum)

Compatible
Software Option

  • EdgeCOS

Compatible
Transceivers

  • 1000BASE SX/ LX/ EX/ ZX
  • 1000BASE SX/ LX/ EX/ ZX (I-temp)
  • 1000BASE-T RJ45
  • 1000BASE-T RJ45 (I-temp)
  • 10G SFP+
  • 10G SFP+ (I-temp)
  • 40G QSFP+ SR4/LR4

Compatible
Cables

  • 10G SFP+ DAC
  • 10G SFP+ AOC
  • 40G QSFP+ DAC
  • 40G QSFP+ AOC
  • 40G DAC QSFP+ to SFP+ Breakout
  • 40G AOC QSFP+ Breakout
