|  ECPO-BA-A1-1717

100G/400G PACKET-OPTICAL PLUGGABLE EDFA

ECPO-BA-A1-1717

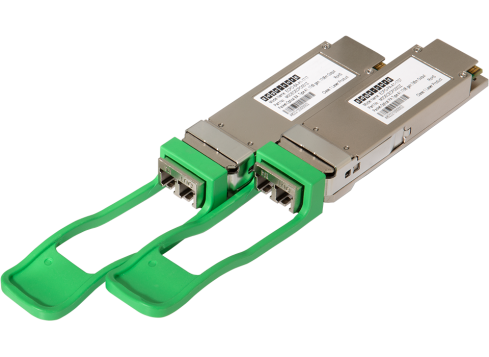

The ECPO-BA and ECPO-PA modules are hot-pluggable Erbium Doped Fiber Amplifiers (EDFAs) in a standard QSFP28 package.

Overview

The ECPO-BA and ECPO-PA modules are hot-pluggable Erbium Doped Fiber Amplifiers (EDFAs) in a standard QSFP28 package. The modules are designed for packet-optical, low-cost, reduced space, and reduced power Data Center Interconnect (DCI) single-channel and DWDM applications. The modules plug into L2/3 switch QSFP28 ports and completely remove the need of using an expensive open line system.

Features

  • DWDM amplification in C band
  • Ultra compact standard QSFP28 package (LC/UPC connectors)
  • Micro processor controlled and management interfaces
  • Up to 17 dBm (BA) and 7 dBm (PA) output power
  • Low power consumption and excellent noise figure
  • Input and output DDM monitoring
  • Signal rate independent
  • Support both AGC and APC modes
  • Telcordia GR-1312-CORE qualified,
  • RoHS compliant

Downloads

PACKET-OPTICAL PLUGGABLE EDFA R02

Datasheet  2 MB
