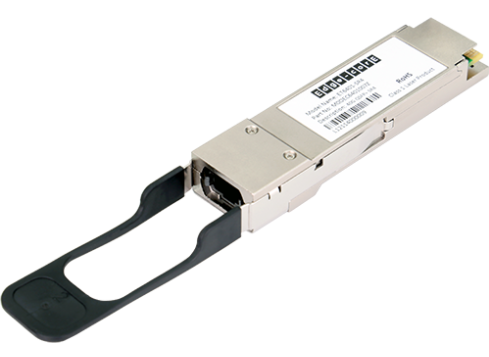

|  ET6401-SR4

40G 100M QSFP+ TRANSCEIVER

ET6401-SR4

The ET6401-SR4 QSFP+ transceiver is designed for 40 Gb/s links over multimode fiber. The transceiver integrates a four-channel VCSEL array and a four-channel PIN photodiode array. Each channel can operate at 10.3125 Gb/s up to 100 m using OM3 or 150 m using OM4 MMF. The transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba.

Overview

The ET6401-SR4 QSFP+ transceiver is designed for 40 Gb/s links over multimode fiber. The transceiver integrates a four-channel VCSEL array and a four-channel PIN photodiode array. Each channel can operate at 10.3125 Gb/s up to 100 m using OM3 or 150 m using OM4 MMF. The transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba.

Features

  • Compliant with IEEE Std 802.3ba, 40G Ethernet SR4
  • Compliant with QSFP+ MSA
  • Management interface specifications per SFF-8436
  • Single MPO connector receptacle
  • 4 channels 850 nm VCSEL array
  • 4 channels PIN photo detector array
  • Up to 10.3 Gb/s per channel data links
  • Single +3.3 V power supply
  • Class 1 laser safety certified
  • Commercial Operating Temperature: 0°C to +70°C
  • Up to 100 m on OM3 MMF and 150 m on OM4 MMF
  • RoHS Compliant

Downloads

ET6401-SR4 DS R04

Datasheet  638 KB
