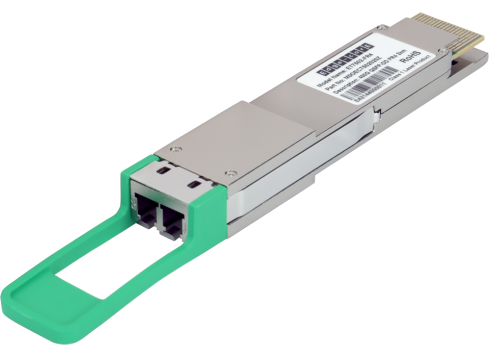

|  ET7502-FR4

400G QSFP-DD FR4 TRANSCEIVER

ET7502-FR4

Edgecore’s QSFP-DD 400Gbps transceiver module is designed for optical communication applications over 400 Gigabit Ethernet links of up to 2 km single mode fiber.

Overview

Edgecore’s QSFP-DD 400Gbps transceiver module is designed for optical communication applications over 400 Gigabit Ethernet links of up to 2 km single mode fiber. This product has 8 independent electrical input/output channels that convert 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) optical signals. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with QSFP-DD MSA.

Features

  • Single 3.3 V power supply
  • Power dissipation < 10 W
  • Up to 2 km over SMF fiber
  • QSFP-DD MSA compliant
  • 8×53.125 Gbps (PAM4) electrical interface
  • Duplex LC connector
  • Commercial case temperature range of 0°C to 70°C
  • PIN and TIA array on the receiver side
  • I2C interface with integrated Digital Diagnostic Monitoring
  • RoHS compliant

Downloads

ET7502-FR4 DS R01

Datasheet  679 KB
