|  ET7402-FR1

100G 2KM QSFP28 FR1 TRANSCEIVER

ET7402-FR1

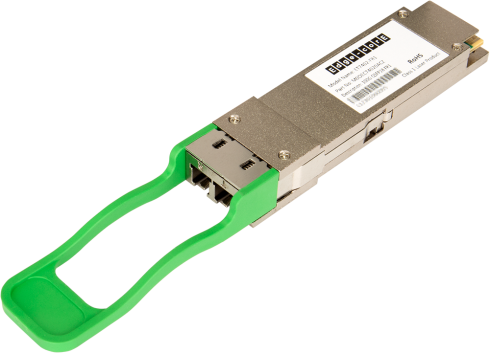

The ET7402-FR1 100G QSFP28 FR transceiver is designed to provide a convenient solution for 100G applications in a QSFP28 form factor.

Overview

The ET7402-FR1 100G QSFP28 FR transceiver is designed to provide a convenient solution for 100G applications in a QSFP28 form factor. The QSFP28 FR transceiver supports a single 53.125 GBd optical lane and is designed for uses up to a 106.25 Gb/s data rate and up to a 2 km link length. The transceiver supports an I2C and digital diagnostic management (DDM) interface.

Features

  • Compliant with industry standards 100G-FR lambda MSA
  • Compliant with SFF-8679 MSA hardware specification
  • Compliant with SFF-8636
  • Compliant with SFF-8661
  • 1310nm EML laser
  • PIN receiver
  • Up to 2km on 9/125um SMF
  • 100ohm differential impedance system
  • Operating Temperature: (Commercial) 0°C to +70°C
  • Trouble-free installation and network bring-up
  •  RoHS Compliant

Downloads

ET7402-FR1 DS R01

Datasheet  793 KB
