Cloud Data Center  |  25G / 10G

  |  DCS202

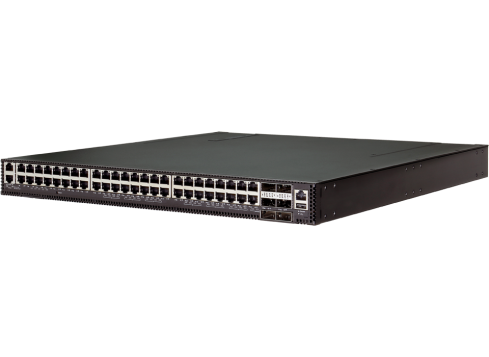

1.08T Data Center Switch

DCS202

AS5835-54T
48 x 10G RJ-45, 6 x 100G QSFP28 ports with Trident 3.
Cost-effective, open network switch for data center fabric

Audi
600G Uplink Capacity
Audi
Non-blocking Design
Audi
10G RJ45 Interfaces
Audi
Resiliency
Audi
Front to Back/ Back to Front Airflow

Overview

The Edgecore DCS202 switch meets the high-performance, availability, and network-scaling requirements of enterprise and cloud data centers. The DCS202 provides full line-rate switching at Layer 2 or Layer 3 across 48 x 10GbE ports and 6 x 100GbE uplinks. The switch can be deployed either as a Top-of-Rack switch, or as part of a 40GbE or 100GbE distributed spine, forming a non-blocking folded-Clos data center fabric. The switch is rack mountable in a standard 19-inch rack.

The DCS202 hardware provides the high availability features required for data center operation, including redundant, hot-swappable AC or -48 VDC PSUs, 4+1 redundant fan modules, and front-to-back or back-to-front airflow options. The DCS202 is an ideal top-of-rack switch for virtualized data centers with support for VXLAN and NVGRE tunneling functions in hardware. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

Features

  • 48 x 10G RJ-45 IEEE 802.3an switch ports.
  • 6 x 100 QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber breakout cable).
  • VXLAN and NVGRE tunneling support in hardware for network virtualization.
  • Rack mountable in standard 19″ racks
  • Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs.

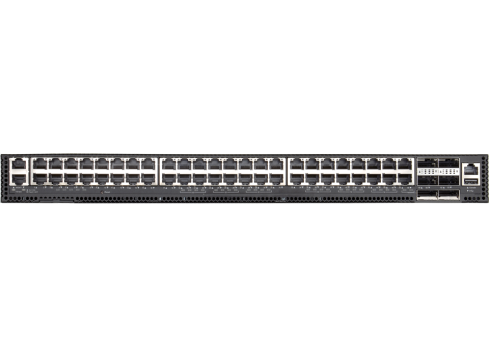

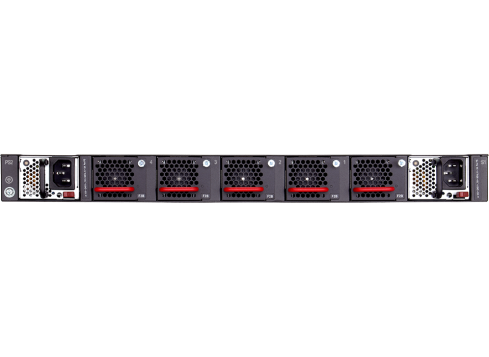

  • All ports on front; PSUs, fan modules on rear
  • Hot-swappable, load sharing, redundant AC or -48 VDC PSUs
  • Hot swappable 4+1 redundant fan modules
  • Management: Ethernet and console RJ-45 ports; USB storage port
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings

Compatible
Software Option

  • CapGemini – SDvAS

  • Open Compute Project – Open Network Linux

  • Pica8 – PicOS

  • Pluribus Netvisor ONE
  • SONiC

Compatible
Transceivers

  • 40G QSFP+
  • 100G QSFP28

Compatible
Cables

  • 40G QSFP+ DAC
  • 40G QSFP+ AOC

  • 100G QSFP28 DAC
  • 100G QSFP28 AOC
  • 100G DAC QSFP28 to SFP28 Breakout
  • 100G AOC QSFP28 to SFP28 Breakout

Downloads

DCS202 (AS5835-54T) Safety and Regulatory Information R01

Safety and Regulatory Information  880 KB

DCS202 (AS5835-54T) QSG R01

User Manual  2 MB

DCS202 (AS5835-54T) DS R06

Datasheet  432 KB
