Cloud Data Center | 400G

  |  DCS511

12.8T DATA CENTER SWITCH

DCS511

AS9737-32DB
32 x 400G QSFP56-DD switch ports with Tomahawk 4
Spine Switch for High-performance Data Center
Up to 16 ports for 400G ZR or ZR+ coherent optics, with a 24-watt power budget per port

Audi
400G High Bandwidth
Audi
Low Latency
Audi
Resiliency
Audi
High Port Density
Audi
400G ZR/ZR+ Transceiver (max 24W)
Audi
24W per Transceiver on Upper 16 Ports

Overview

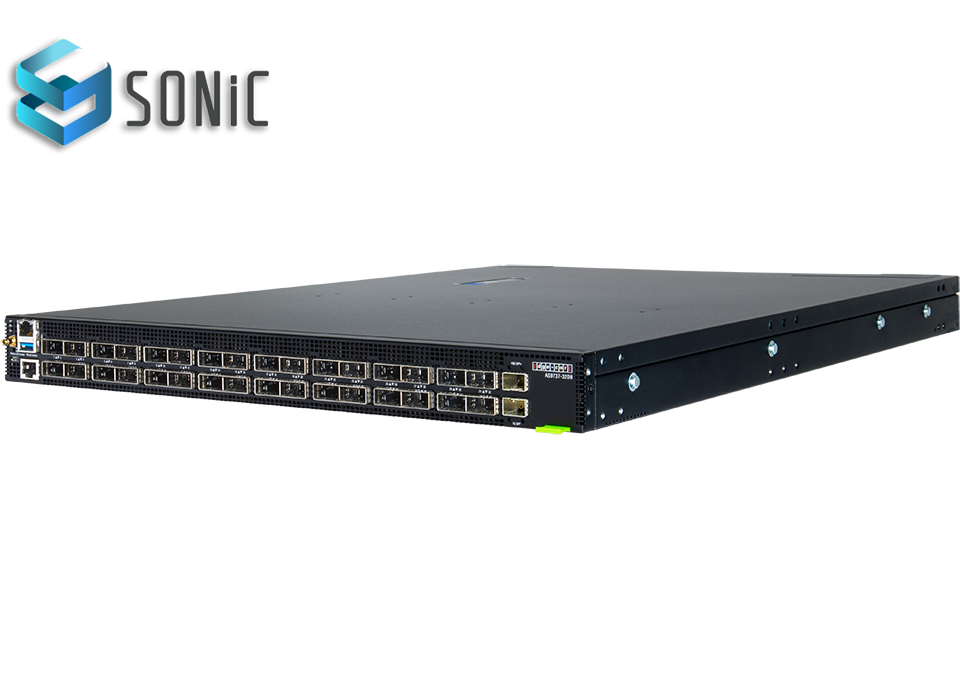

The Edgecore DCS511 is an open network spine switch for high-performance data centers.
The DCS511 can be deployed as a spine switch supporting 100/400 GbE spine-to-spine or spine-to-leaf interconnects, target deployments can be Web-scale Data Centers and SP / Enterprise Data Centers.
This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System software, including the open source options Open Network Linux, plus commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • Next Gen I²C Design
  • QSFP56-DD switch ports, each supporting 1 x 400G QSFP56-DD, 1 x 100G QSFP28, 1 x 40G QSFP+, or via breakout cables 2 x 200G (2 x 4 lanes 50G PAM4), 4 x 100G (4 x 2 lanes 50G PAM4), 2 x 50G (2 x 2 lanes 25G NRZ), 4 x 25G NRZ, or 4 x 10G NRZ
  • Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs

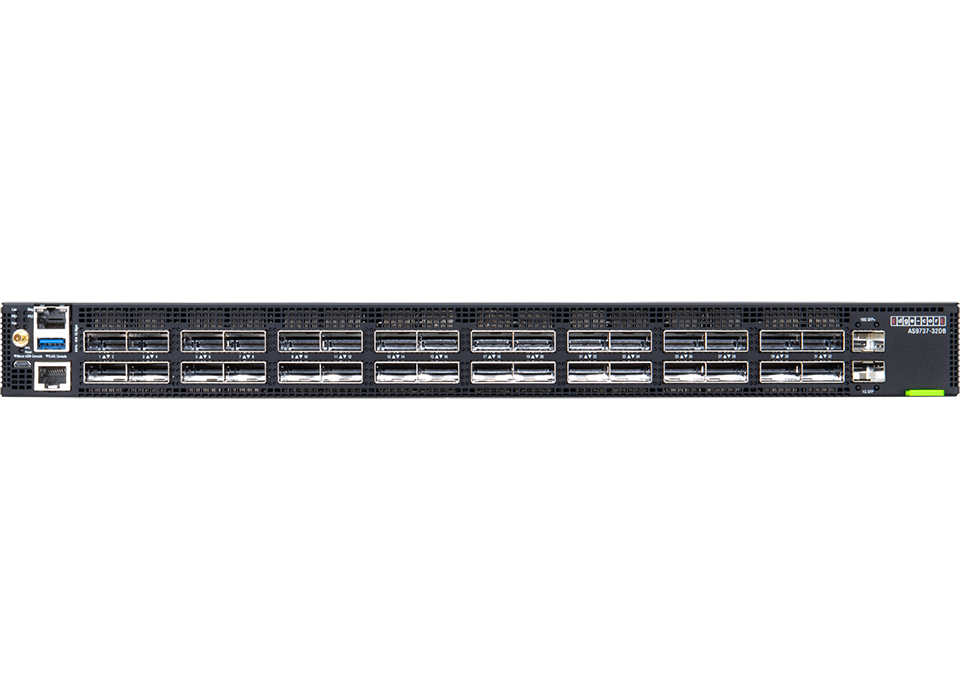

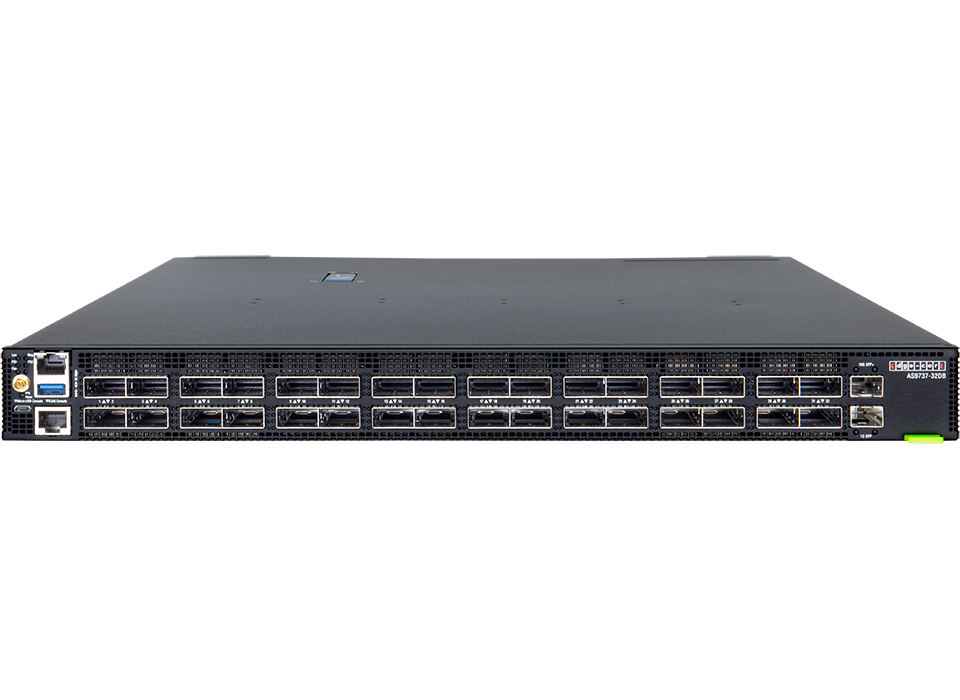

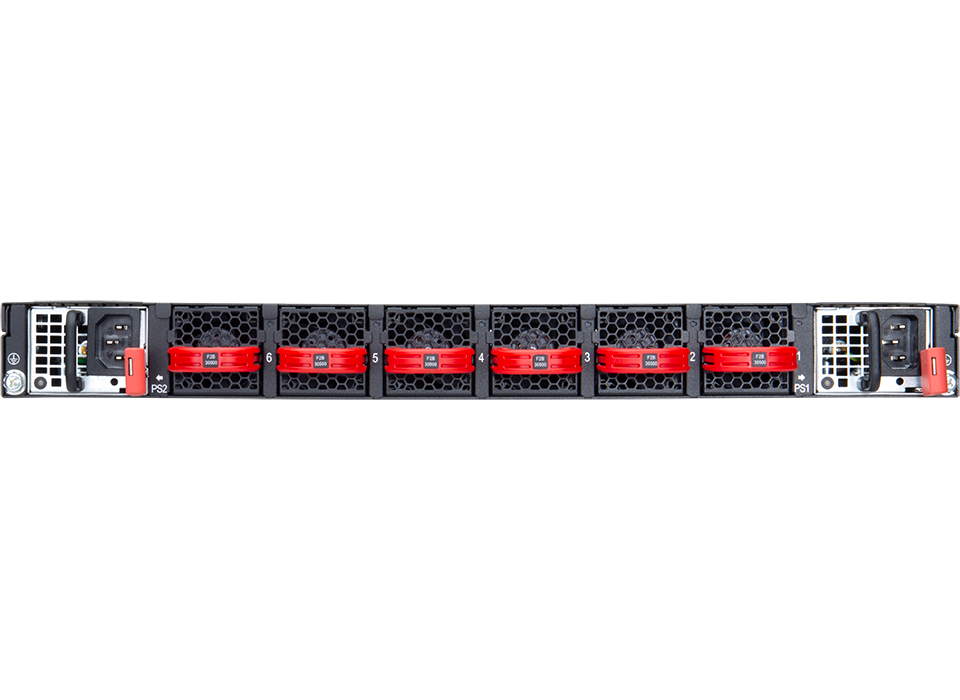

  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant 1500W AC or 48VDC PSUs
  • Higher optical segment support
  • Supports 400G ZR/Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports
  • Contains e-fuses to protect individual transceivers
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
  • Supports VXLAN

Specifications

Switch Ports 32 x QSFP56-DD 400GbE
Switch Silicon BCM56993 Tomahawk 4
Processor Intel® Xeon® Quad-core 2.2GHz
BMC AST2600 with OpenBMC
SPI Flash 512MB x 2
Memory 32GB DDR4 SO-DIMM with ECC
Storage 128GB m.2 SATA SSD with PLP support
TPM TPM2.0
Rack 1 RU form factor
Timing and Sync 1PPS Port, SyncE, IEEE 1588v2 PTP
Fans Hot-swappable 5 + 1 redundant fans
Storage Temperature -40°C to 70°C
Operating Temperature 0° C ~ 45° C (Front-to-Back)
0° C ~ 30° C (Back-to-Front)
Power Draw 1370 W (Maximum)

Compatible
Software Option

  • SONiC

Compatible
Transceivers

  • 40G QSFP+
  • 100G QSFP28
  • 400G QSFP-DD
  • 400G QSFP-DD ZR ( DCO )

Compatible
Cables

  • 40G QSFP+ DAC
  • 100G QSFP28 DAC
  • 100G QSFP28 AOC
  • 400G QSFP-DD DAC
  • 400G QSFP-DD AOC
  • 400G QSFP-DD to QSFP56 Breakout
