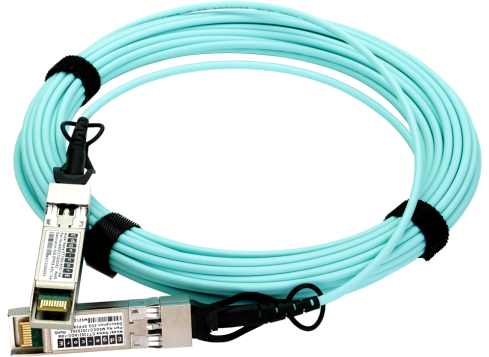

|  ET7302-AOC-xM

25 GBPS ACTIVE OPTICAL CABLE

ET7302-AOC-xM

The ET7302-AOC-xM is a 3~100 m active optical cable with one SFP28 to one SFP28 25G connectors. The active optical cables are 25G hot-pluggable cables that support Infiniband and Ethernet data transmission. The cables provide parallel interconnects—4 transmitting and 4 receiving data lanes—and support distances up to 100 meters.

Overview

The ET7302-AOC-xM is a 3~100 m active optical cable with one SFP28 to one SFP28 25G connectors. The active optical cables are 25G hot-pluggable cables that support Infiniband and Ethernet data transmission. The cables provide parallel interconnects—4 transmitting and 4 receiving data lanes—and support distances up to 100 meters. The active optical cables are composed of multi-channel optical transceivers at both ends and multimode fiber cable in between. This integrated optical module solution removes the complicated optical fiber interface and replaces it with a friendly and intuitive electrical-to-electrical interface. The ET7302-AOC-xM is designed to meet the requirements of high-speed, high-density, and low-power-consumption applications in today’s data centers.

Features

  • Hot pluggable
  • Bit rate support from 25G to 28GB/s
  • Pre-terminated fiber cable
  • Operating environment temperature: 0℃ ~ 70℃
  • Maximum power consumption 1.0 W each terminal
  • SFP28 housing with enhanced EMI shielding
  • Single 3.3 V power supply
  • Programmable EEPROM for serial identification
  • Up to 70 m/100 m by active optical cable with OM3/OM4 fiber
  • SFF-8472
  • SFF-8432 Mechanical MSA
  • RoHS complaint

Downloads

ET7302-AOC DS R02

Datasheet  1 MB
