Enterprise  |  Industrial Switches

  |  ECIS4500-8P4F

INDUSTRIAL POE+ GIGABIT ETHERNET SWITCHES

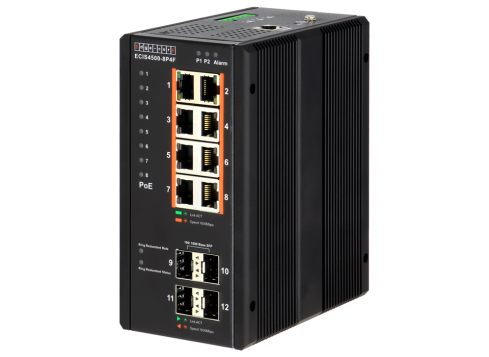

ECIS4500-8P4F

The Edgecore ECIS4500 PoE series are managed industrial PoE+ Gigabit Ethernet switches. The switches comply to the IEEE 802.3 af/at standard and are able to deliver up to 30 watts of power per port along with data over standard Ethernet cabling.

Overview

The Edgecore ECIS4500 PoE series are managed industrial PoE+ Gigabit Ethernet switches. The switches comply to the IEEE 802.3 af/at standard and are able to deliver up to 30 watts of power per port along with data over standard Ethernet cabling. The switches can be used to power any IEEE 802.3af/at-compliant PoE PD devices, and include PoE power management features that ease the deployment effort and PoE power budget planning, as well as eliminating the need for additional wiring to reach a power source.

Features

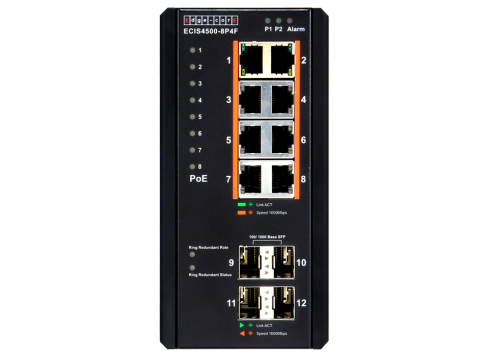

  • 8/4 10/100/1000BASE-TX PoE ports plus 4/2 100FX/1000BASE-F SFP slots
  • IEEE 802.3af /IEEE 802.3at Power Over Ethernet Compliant
  • Ultra PoE Supported (Only ECIS4500-8P2T4F for Port 1& 2)
  • L2 Wire-speed Switching Engine
  • Network redundant LACP, Spanning tree STP, RSTP & MSTP
  • E-Ring Technology: fast ring fail-over protection (< 20 ms)
  • CLI/Web/SNMP management interfaces

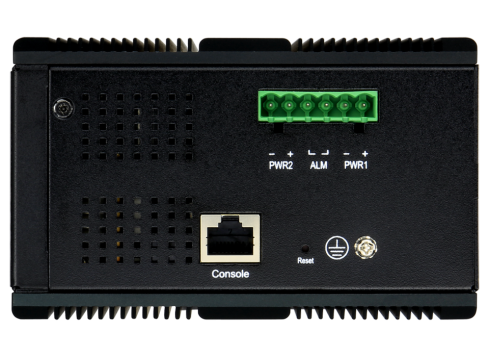

  • Dual power input & reverse power protection
  • DIN-Rail and Wall mounting option

Compatible
Transceivers

  • 1000BASE SX/ LX/ EX/ ZX (I-temp)
  • 1000BASE-T RJ45 (I-temp)

Downloads

ECIS4500 PoE Series DS R04

Datasheet  5 MB

ECIS4500 PoE Series DS (Project Only for Indonesia)

Datasheet  400 KB

ECIS4500 PoE Series CLI Reference Guide R02

User Manual  1 MB

ECIS4500 PoE Series Web Management Guide R02

User Manual  6 MB
