|  ET6402-10DAC-xM

1M, 3M, 5M, 40GBPS TO 4 X 10 GBPS BREAKOUT DAC CABLE

ET6402-10DAC-xM

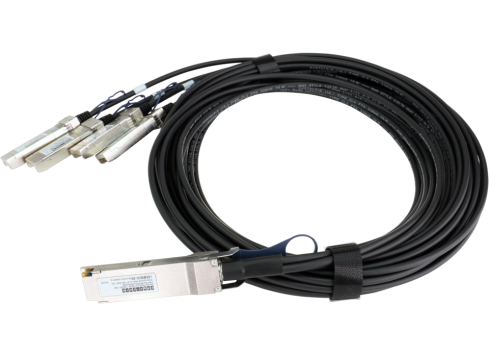

The ET6402-10DAC-xM is a 1~5m short passive fan-out copper direct attach cable with one QSFP+ connector and four SFP+ 10G connectors. The QSFP+ cable assemblies are high-performance, cost-effective I/O solutions for 40G Ethernet and 40G Fibre Channel applications.

Overview

The ET6402-10DAC-xM is a 1~5m short passive fan-out copper direct attach cable with one QSFP+ connector and four SFP+ 10G connectors. The QSFP+ cable assemblies are high-performance, cost-effective I/O solutions for 40G Ethernet and 40G Fibre Channel applications. The QSFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.

Features

  • Support data rates up to 40 Gbps
  • Compliant with QSFP+ MSA specifications
  • Compatible with IEEE 802.3ba
  • 4 independent full-duplex channels
  • All-metal housing for superior EMI performance
  • EEPROM for cable signature and system communications
  • 26 AWG to 30 AWG cable sizes available
  • Temperature Range: 0~70 °C
  • RoHS compliant

Downloads

ET6402-10DAC-XM DS R01

Datasheet  1 MB
