Cloud Data Center  |  1G

  |  EPS122

108G ENTERPRISE SWITCH

EPS122

AS4625-54P
48 x 1G RJ45 PoE, 6 x 1G / 10G switch ports with Trident 3.
Easy-to-use entry level open networking switch with PoE capability

Audi
10G Interfaces
Audi
High Port Density
Audi
Front-to-Back Airflow
Audi
30W/60W/90W+ PoE Support

Overview

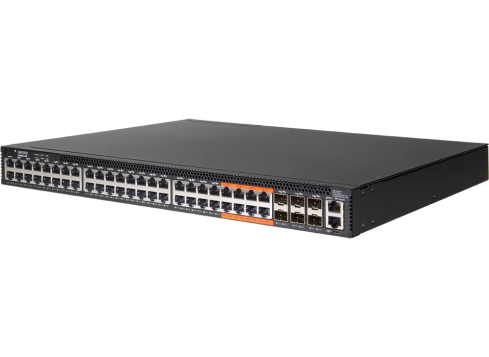

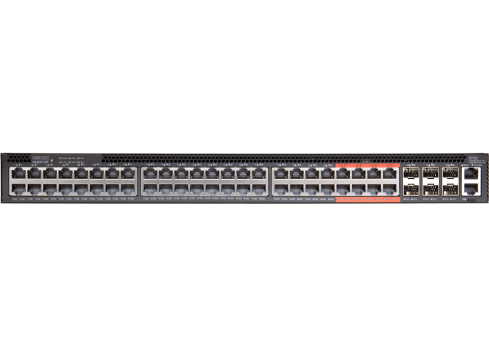

The Edgecore EPS122 is an entry level, high-performance Gigabit Ethernet L2 PoE switch featuring 54 ports; 48 x 10/100/1000BASE-T ports and 6 x 1G/10G SFP+ uplink ports. Ports 1 to 40 (10/100/1000BASE-T) fully support IEEE 802.3at and IEEE 802.3bt Power-over-Ethernet (PoE) up to 30 W, and ports 41 to 48 (10/100/1000BASE-T) fully support IEEE 802.3at and IEEE 802.3bt Type 4 up to 90 W. The EPS122 is ideal as an access PoE switch for enterprise or campus access networks. The switch includes redundant, hot-swappable AC PSUs and fixed 2+1 redundant fans with port-to-power airflow, and an ability to provide 8 ports with up to 90 Watts of power per port (depending on the PoE power budget) to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing the existing Cat. 5/5e/6 cable infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source options, plus commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • Easy-to-use entry level open networking switch with PoE capability, ideal for enterprise and campus access networking.
  • Fully utilizing the existing Cat. 5/5e/6 cable infrastructure (90 W requires Cat6A Cabling).
  • Full line-rate L2/L3 forwarding and switching.
  • PoE capability able to power up enterprise, hospital, warehouse, and retail environments by connecting to security devices, Wi-Fi access points, IP phones, and IP cameras.
  • 48 x 10/100/1000BASE-T RJ-45 ports.
  • 6 x SFP+ uplink ports supporting 1GE/10GE.
  • Ports 1 to 40 up to 30 W per-port.
  • Ports 41 to 48 up to 90 W per-port.
  • Intel® Atom® COMe module with C3508 4-Core 1.6GHz x86 processor.
  • Support TPM 2.0 with SPI Interface.
  • Options to enable UEFI Secure Boot.
  • Full line-rate L2/L3 forwarding and switching.

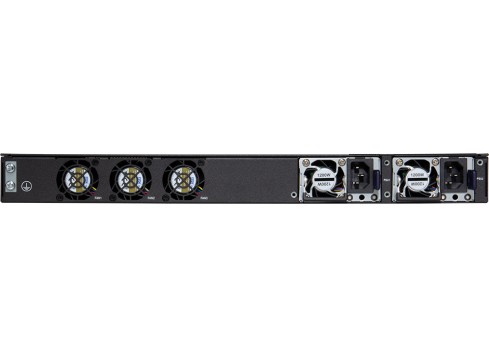

  • Hot-swappable, load-sharing, redundant AC PSUs.
  • Fixed 2+1 redundant fans.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source options and commercial NOS offerings

Compatible
Software Option

  • Pica8 – PicOS

  • SONiC

Compatible
Transceivers

  • 1000BASE SX/LX/EX/ZX (C-temp/I-temp)

  • 1G SFP BIDI up to 40km (C-temp/I-temp)

  • 10G SFP+ (C-temp/I-temp)

  • 10G SFP+ BIDI up to 40km (C-temp/I-temp)

  • 10G DWDM SFP+ up to 80km (C-temp/I-temp)

Downloads

EPS122 (AS4625-54P) Safety and Regulatory Information R01

Safety and Regulatory Information  500 KB

EPS122 (AS4625-54P) Quick Start Guide R01

User Manual  1 MB

EPS122 (AS4625-54P) DS R02

Datasheet  3 MB
