| ET6402-DAC-xM
1M, 3M, 5M 40GBPS DIRECT ATTACH CABLE
ET6402-DAC-xM

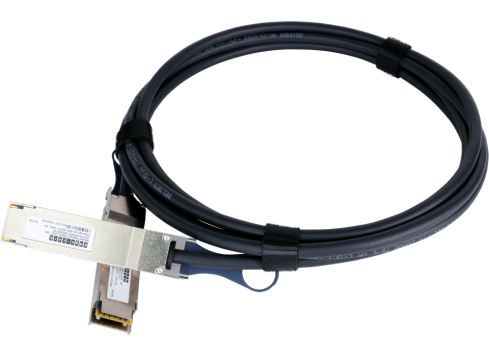

The ET6402-DAC-xM is a 1~5m short passive copper direct attach cable with one QSFP+ to one QSFP+ 40G connectors. The QSFP+ cable assemblies are high-performance, cost-effective I/O solutions for 40G Ethernet and 40G Fibre Channel applications.
Overview
The ET6402-DAC-xM is a 1~5m short passive copper direct attach cable with one QSFP+ to one QSFP+ 40G connectors. The QSFP+ cable assemblies are high-performance, cost-effective I/O solutions for 40G Ethernet and 40G Fibre Channel applications. The QSFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.
Features
- Support data rates up to 40 Gbps
- Compliant with QSFP+ MSA specifications
- Compatible with IEEE 802.3ba
- 4 independent full-duplex channels
- All-metal housing for superior EMI performance
- EEPROM for cable signature and system communications
- 26 AWG to 30 AWG cable sizes available
- Temperature Range: 0~70 °C
- RoHS compliant
