Service Provider  |  Aggregation Routers

  |  AGR420

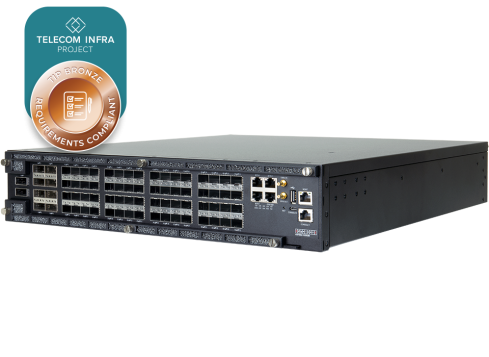

2.4T AGGREGATION ROUTER

AGR420

AS7946-74XKSB
64 x 10G/25G, 8/2 x 100G with Qumran 2C.
High-performance 25GbE leaf router for telecom and data center applications

Key Features

Audi
Server-Grade Xeon Family CPU
Audi
Rich Partner Ecosystem
Audi
Multirole Capable
Audi
Supporting Hi-Powered Optics/XCVRs
Audi
Large TCAM

Overview

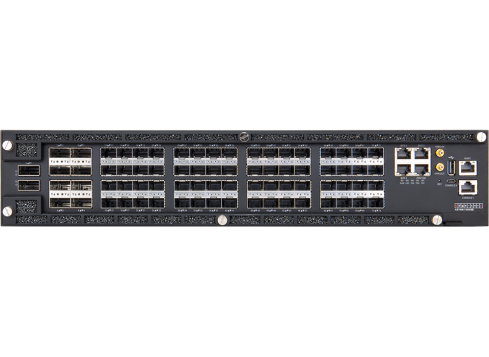

AGR420 is a high performance 25GbE aggregation router that consists of fixed 64 x 10G/25G SFP28, 8 x 100GE QSFP28 and 2 x 100G QSFP-DD (supporting high power optics only, compatible with QSFP28 also) network interface configuration with External BCM16K Lookup Engine enables the 2RU compact design to be deployed as a disaggregated or standalone router. The BCM16K Knowledge-Based Processor (KBP) performs high-speed operations on large-rule databased for a wide range of telecommunications applications. It provides network awareness, enables real-time modifications, and updates to the routing configuration, making it ideal for packet classification, policy enforcement, and forwarding.
AGR420 is engineered with the latest Broadcom StrataDNX™ Qumran2C silicon with an external lookup engine that target for use cases including OpenBNG, 25G pre-aggregation router, PE router or data center TOR switch/router. This open networking router is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System (NOS) soſtware, including the open source option Open Network Linux (ONL), plus commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • High performance 25GbE router for Telecom and Data Center applications
  • Incorporates Broadcom StrataDNX™ Qumran2C Silicon
  • Integrated BCM16K External Lookup Table for expansion
  • Supports Front-to-Back Airflow SKU
  • Hot-Swappable, Load-sharing, and 1+1 redundant DC-DC/AC-DC PSUs

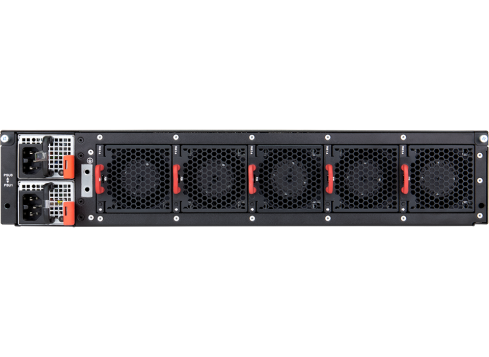

  • 4+1 Redundant, Hot-Swappable Fan Modules
  • Support Synchronous Ethernet(SyncE), and IEEE 1588v2 PTP

Compatible
Software Option

  • Casa systems
  • IP Infusion OcNOS
  • RtBrick Full Stack OS
  • Arrcus ArcOS

Compatible
Transceivers

  • 1000BASE EX / ZX
  • 10G SFP+

  • 100G QSFP28

Downloads

AGR420 (AS7946-74XKSB ) DS R03

Datasheet  4 MB

AGR420 (AS796-74XKSB) Safety and Regulatory Information R01

Safety and Regulatory Information  642 KB

AGR420 (AS7946-74XKSB ) Quick Start Guide R01

User Manual  1 MB
