|  ET5402-ZR-DW-Cxy

10G DWDM 80KM SFP+ TRANSCEIVER

ET5402-ZR-DW-Cxy

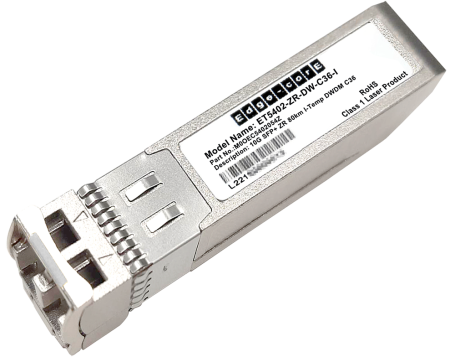

Edgecore’s ET5402-ZR-DW transceiver module is designed for C-band DWDM 10G Ethernet links over 80km single mode fiber.

Overview

Edgecore’s ET5402-ZR-DW transceiver module is designed for C-band DWDM 10G Ethernet links over 80km single mode fiber. The module incorporates a DWDM Electro-absorption Modulated Laser (EML) transmitter in the C-band channel (Cxy) and an avalanche photodiode (APD) receiver. The electrical interface of the module is compliant with the SFP+ MSA. Digital diagnostic functions are available via a 2-wire serial interface, as specified in SFF-8472.

Features

  • Up to 11.3Gbps data links
  • DWDM EML transmitter and APD receiver
  • Metal enclosure, for lower EMI
  • Single +3.3 V power supply
  • Hot-pluggable
  • Compliant with SFP+ MSA with LC connector
  • Operating temperature range:
    • Commercial: 0℃~+70℃
    •  Industrial: -40℃~+85℃
  • RoHS compliant
  • 2-wire interface with integrated Digital Diagnostic Monitoring (DDM)
  • Up to 80 km transmission distance over Single Mode Fiber (SMF)
  • Low Power Dissipation: 1.6 W power dissipation with CDR

Downloads

ET5402-ZR-DW-CXY

Datasheet  3 MB
