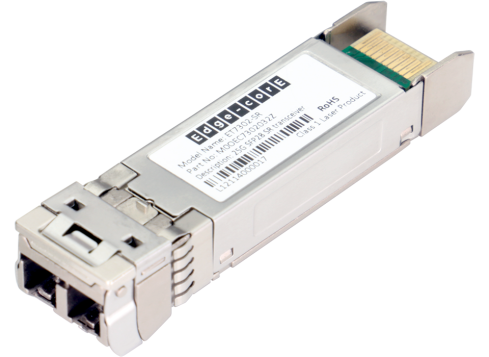

|  ET7302-SR

25G 100M SFP28 TRANSCEIVER

ET7302-SR

The ET7302-SR SFP28 transceiver is compliant with the 25 Gigabit Small Form Factor Pluggable SFP28 Multi-Source Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 12.0, and is designed for use at up to a 25.78 Gb/s data rate and a 100 m link length. It is compatible with SFF-8432.

Overview

The ET7302-SR SFP28 transceiver is compliant with the 25 Gigabit Small Form Factor Pluggable SFP28 Multi-Source Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 12.0, and is designed for use at up to a 25.78 Gb/s data rate and a 100 m link length. It is compatible with SFF-8432.

Features

  • Up to 25.78 Gb/s bi-directional data links
  • Electrical interface specifications per SFF-8431
  • Management interface specifications per SFF-8432 and SFF-8472
  • Build-in dual CDR with shut-off control
  • SFP28 MSA package with duplex LC connector
  • Uncooled 850 nm VCSEL Laser
  • Up to 70 m on OM3 MMF and 100 m on OM4 MMF
  • Single +3.3 V power supply
  • Class 1 laser safety certified
  • 1.0W maximum power consumption with established link
  • Operating Temperature: 0°C to +70°C
  • RoHS Compliant

Downloads

ET7302-SR DS R02

Datasheet  1 MB
