|  ET7402-25DAC-xM

1M, 3M, 5M, 100GBPS TO 4 X 25 GBPS BREAKOUT DAC CABLE

ET7402-25DAC-xM

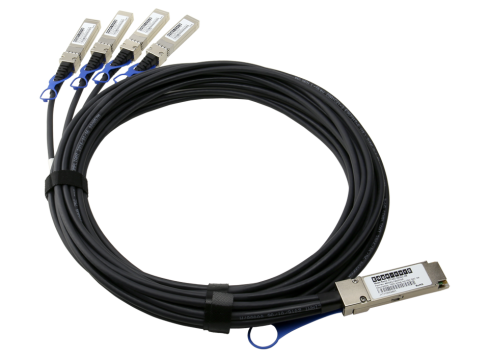

The ET7402-25DAC-xM is a 1-5m short passive fan-out copper direct attach cable with one QSFP28 connector and four SFP28 25G connectors. The QSFP28 cable assemblies are high-performance, cost-effective I/O solutions for 100G Ethernet and 100G Fibre Channel applications.

Overview

The ET7402-25DAC-xM is a 1-5m short passive fan-out copper direct attach cable with one QSFP28 connector and four SFP28 25G connectors. The QSFP28 cable assemblies are high-performance, cost-effective I/O solutions for 100G Ethernet and 100G Fibre Channel applications. The QSFP28 copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry-standard requirements for performance and reliability.

Features

  • Support data rates up to 100Gbps
  • Compliant with QSFP28 (100G)/SFP28 (25G) MSA specifications
  • All-metal housing for superior EMI performance
  • EEPROM for cable signature and system communications
  • 26 AWG to 30 AWG cable sizes available
  • Temperature Range: 0~70 °C
  • RoHS compliant

Downloads

ET7402-25DAC-XM DS R01

Datasheet  913 KB
