Enterprise  |  L2 Switches

  |  ECS5520-18X

L2+/LITE L3 10G ETHERNET AGGREGATION SWITCH WITH 2 40G UPLINKS

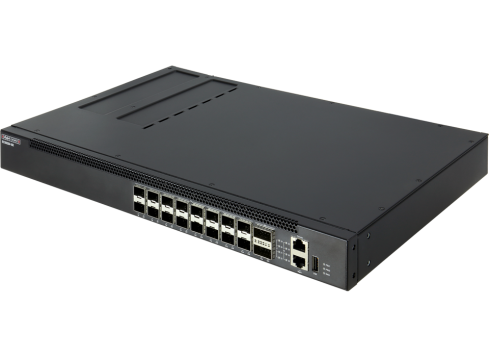

ECS5520-18X

The ECS5520 series consists of two switches with sixteen 10GbE SFP+ ports or 10GBASE-T ports and two 40GbE uplink ports. The switches are designed for carrier/enterprise aggregation or small data center top-of-rack.

Overview

The ECS5520 series consists of two switches with sixteen 10GbE SFP+ ports or 10GBASE-T ports and two 40GbE uplink ports. The switches are designed for carrier/enterprise aggregation or small data center top-of-rack. The ECS5520 series is an ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures, serving with a 2:1 oversubscription. The ECS5520 switches are packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to network aggregation, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services from home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements.

Features

  • High-performance 10G Layer 2+ /Lite L3 managed switch with 480 Gbps switching capacity
  • Ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures, serving with a 2:1 oversubscription

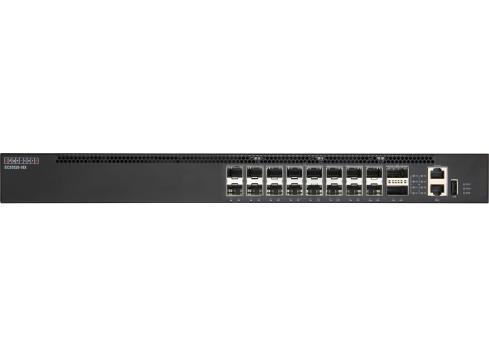

  • 16 x 10G SFP+ + 2 x 40G QSFP+ uplinks
  • Full L2+ feature with static route

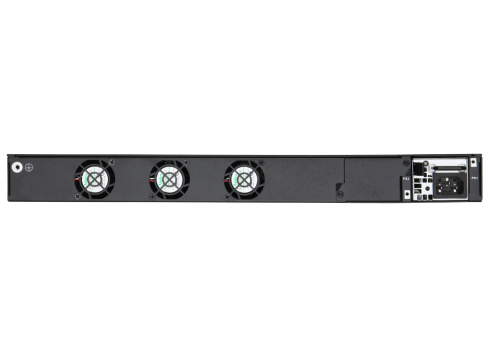

  • Dual hot swappable, load sharing power supplies to ensure the reliability of the switch
  • Optional 2nd AC power module for redundancy & DC power module
  • Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
  • Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, L2/L3/L4 ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential prioritization of packet flows and avoid congestion of egress queues
  • Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management
  • Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
  • Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
  • IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
  • IPv4/ IPv6 static route

Compatible
Transceivers

  • 1000BASE SX/ LX/ EX/ ZX
  • 1000BASE SX/ LX/ EX/ ZX (I-temp)
  • 1000BASE-T RJ45
  • 1000BASE-T RJ45 (I-temp)
  • 10G SFP+
  • 10G SFP+ (I-temp)
  • 40G QSFP+ SR4/LR4

Compatible
Cables

  • 10G SFP+ DAC
  • 10G SFP+ AOC
  • 40G QSFP+ DAC
  • 40G QSFP+ AOC
  • 40G DAC QSFP+ to SFP+ Breakout
  • 40G AOC QSFP+ Breakout
