|  ECPO-MDM4-A1-05

PACKET-OPTICAL 4CH COMPACT-MDM

ECPO-MDM4-A1-05

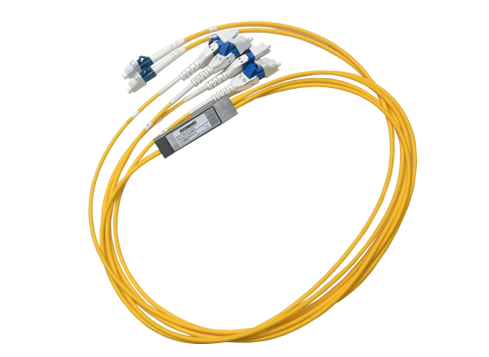

The ECPO-MDM4 is Edgecore’s ultra compact, cable-type DWDM Mux/Demux designed for packet-optical DWDM applications that completely removes the need for an external Mux/Demux chassis.

Overview

The ECPO-MDM4 is Edgecore’s ultra compact, cable-type DWDM Mux/Demux designed for packet-optical DWDM applications that completely removes the need for an external Mux/Demux chassis. Combined with Edgecore’s pluggable EDFA modules, the DWDM Mux/Demux adds the full functions of a 0-RU DWDM/amplifier platform to Edgecore’s packet-optical switch product family, with reduced rack space, lowest-power, and optimum cost effectiveness

Features

  • C-band DWDM 4-channel Mux/Demux (C25/C27/C29/C31 channels with min 0.8nm 3dB BW)
  • Ultra compact cable-style package for switch packet-optical DWDM applications
  • LC/UPC connector
  • Operating temperature range: -5℃~+70℃
  • RoHS Compliant

Downloads

ECPO-MDM4 DS R01

Datasheet  1 MB
