DCS810

12.8T P4 Programmable Data Center Switch

AS9516-32D
32 x 400G QSFP-DD switch ports
Programmable leaf or spine switch for large scale data centers



The Edgecore DCS810 switch is a programmable leaf or spine switch for large scale data centers. In a 1RU form factor, the switch provides line-rate L2 switching and L3 routing, deep packet inspection, and traffic load balancing etc, across the 32 x QSFP-DD ports that support up to 32 x 400 GbE connections.

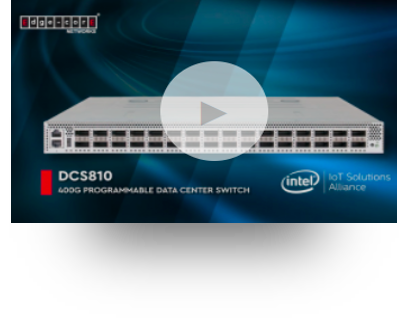

Do you want to learn more? Check out this video.
Click to see 400G Programmable solutions


Overview

The Edgecore DCS810 switch is a programmable leaf or spine switch for large scale data centers. In a 1RU form factor, the switch provides line-rate L2 switching and L3 routing, deep packet inspection, and traffic load balancing etc, across the 32 x QSFP-DD ports that support up to 32 x 400 GbE connections. The DCS810 can be deployed as a leaf switch supporting 25/50/100 GbE to servers, routers etc. with 100/400 GbE uplinks, or as a spine switch supporting 100/400 GbE leaf and spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible network operating system (NOS) soſtware, including the open source option Open Network Linux and commercial NOS offerings.

Specs

Ports 32
Predominant Port Type 400G QSFP-DD
High Availability Redundant Power Supply
Redundant Fans

Features

  • Very high performance, bare-metal switch infrastructure for data center fabric
  • Designed with programmable Tofino2 switch silicon from Intel Networks
  • Deploys as leaf or spine switch supporting 25/50/100 GbE to servers, with 100 or 400 GbE uplinks
  • Deploys as spine switch supporting 100 or 400 GbE leaf and spine interconnects
  • 32 x QSFP-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 4 x 100 GbE, 8 x 50 GbE or 16 x 25 GbE or 40 GbE or 10 GbE
  • Layer 2 or Layer 3 forwarding of 12.8 Tbps (25.6Tbps full duplex)
  • Supports port-to-power airflow direction
  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant AC power
  • 5+1 redundant, hot-swappable fan modules
  • Switch pre-loaded with diagnostics and Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
  • Compatible with SONiC open source network soſtware
  • Quad programmable packet processing pipelines with 20 Match Action Unit stages per pipe

Downloads

Category File Name Version Release Date File Size Download
Datasheet DCS810 (AS9516-32D) DS R01 US 2021-09-06 3771.93 KB Download
User Manual DCS810 (AS9516-32D) Quick Start Guide R01 US 2021-09-06 3240.11 KB Download
Certification Edgecore RoHS & REACH Declaration - DCS810 (AS9516-32D) US 2021-09-06 936.31 KB Download
Certification DCS810 (AS9516-32D)_CE_of_Doc US 2021-09-06 40.24 KB Download
Safety and Regulatory Information DCS810 (AS9516-32D) Safety and Regulatory Information R01 US 2021-09-06 1145.69 KB Download
