510G ENTERPRISE SWITCH

EPS203

AS4630-54NPE
36 x 2.5G, 12 x 2.5/5/10G, 4 x 25G, 2 x 100G with Trident 3.
Open network switch for data center racks or enterprise environment

Audi
100G Interfaces
Audi
25G Interfaces
Audi
10G RJ45 Interfaces
Audi
5G RJ45 Interfaces
Audi
2.5G RJ45 Interfaces
Audi
30W/60W/90W+ PoE Support
Audi
High Port Density
Audi
Front-to-Back Airflow
Audi
Non-blocking Design
Audi
VxLAN NVGRE
Audi
Multirole Capable

Overview

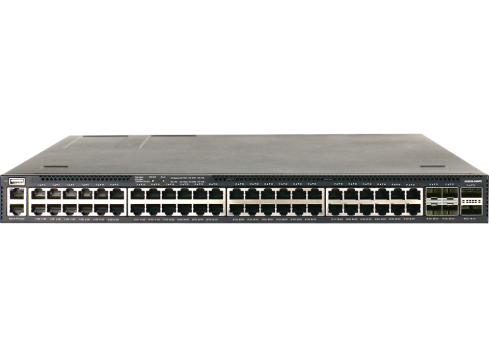

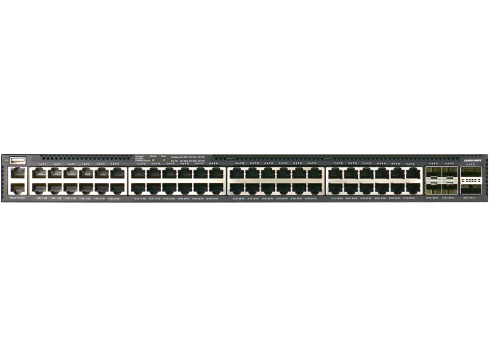

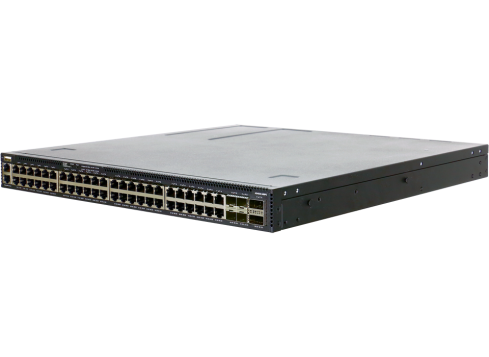

The Edgecore EPS203 is a high-performance Multi-Gigabit Ethernet L2/L3 switch featuring 54 ports. The EPS203 has 36 x 100M/1000M/2.5G ports,12 x 1G/2.5G/5G/10GBASE-T ports, 4 x 25G uplink ports and 2x100G QSFP28 stacking ports (stacking capability subject to NOS implementation); plus all RJ-45 Ethernet ports can support up to 90 W Power-over-Ethernet (PoE).

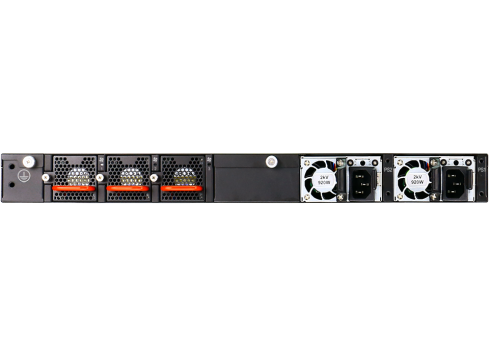

EPS203 is ideal for campus networking and it includes redundant hot-swappable AC PSUs and port-to-power airflow, and EPS203 able to provide up to 90 Watts (Dependson the PoE power budge) of power per port for all 48 RJ45 ports including 10G port to attached access devices, such as VoIP phones, wireless access points, surveillance cameras etc, which fully utilizing existing Cat. 6 cable infrastructure. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source NOS options and commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • High-end and powerful open network access switch for Enterprise access environment.
  • 36 x 1G/2.5G and 12 x 1G/2.5G/5G/10GBASE-T connections to VoIP Phones, Wi-Fi APs, IP Camera with 25 GbE uplinks to Campus aggregation network.
  • PoE models ideal for enterprise, hospitality, warehouse, retail applications interconnecting security, camera, Wi-Fi AP, IP Camera devices.
  • 36x100M/1000M/2.5G ports, 12 x 1G/2.5G/5G/10GBASE-T ports.
  • 4 x 25G SFP28 uplink ports supporting 10GbE/25GbE.
  • 2 x100G QSFP28 stacking ports (Subject to NOS implementation).
  • Support TPM 1.2 with LPC interface.
  • Options to enable UEFI Secure Boot.
  • Full line-rate L2 or L3 forwarding and switching.
  • Hot-swappable, load-sharing, redundant AC PSUs.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Compatible
Software Option

  • Pica8 – PicOS

  • SONiC

Compatible
Transceivers

  • 10G SFP

  • 25G SFP28

  • 40G QSFP+
  • 100G QSFP28

Compatible
Cables

  • 10G SFP+ DAC

  • 10G SFP+ AOC

  • 25G SFP28 DAC

  • 25G SFP28 AOC

  • 40G QSFP+ DAC
  • 40G QSFP+ AOC

  • 100G QSFP28 DAC
  • 100G QSFP28 AOC
  • 100G DAC QSFP28 to SFP28 Breakout

  • 100G AOC QSFP28 to SFP28 Breakout

Downloads

EPS203 (AS4630-54NPE) DS R05

Datasheet  1 MB

EPS203 (AS4630-54NPE) Quick Start Guide-R02

User Manual  1,002 KB
