The Industry's Most Comprehensive Aggregation Router Solution on the Market

Edgecore provides leading open and disaggregated networking solutions with a full portfolio of data center switches and edge/access routers for the networking market. With Edgecore’s professional services and expertise, DC operators, enterprises and service providers can deploy future-proof and cutting-edge solutions for Internet peering, 5G network, edge, access, and aggregation applications.

Edgecore Open Aggregation Routers AGR100 Series & AGR400 Series

With the introduction of 5G, mobile networks, carrier, and cloud service providers are planning to upgrade their network infrastructure to address the major growth in bandwidth driven by new innovative services and the increased number of users. Edgecore’s aggregation router solution – AGR100 series and AGR400 series – are based on Broadcom StrataDNX family chipsets with deep buffer design, providing an open networking platform that serves a variety of use cases, including core, metro, and aggregation.

Key Values of Edgecore's Aggregation Router Solution:
Edgecore Open Aggregation Router Applications:

AGR Series for Service Providers

Service Provider Solution Features

Layer 3 VPN

Seamless MPLS

Segment Routing

Hierarchical QoS

IEEE 1588v2 & SyncE

Traffic Engineering

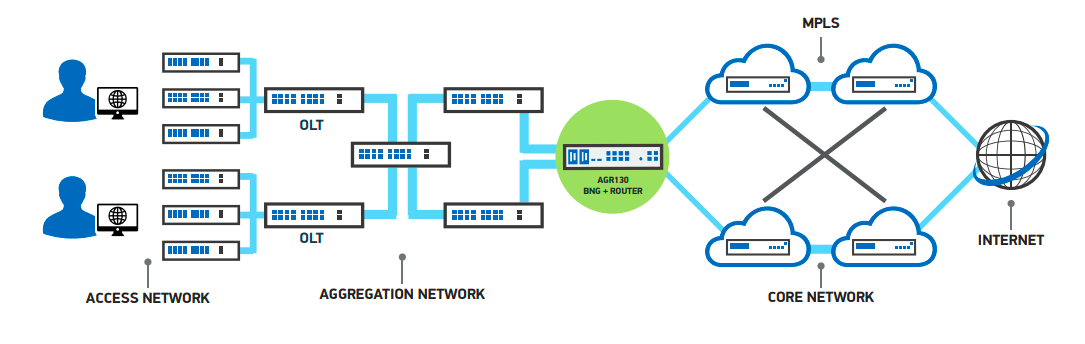

AGR Series for Medium Centralized or Distributed BNG Deployments

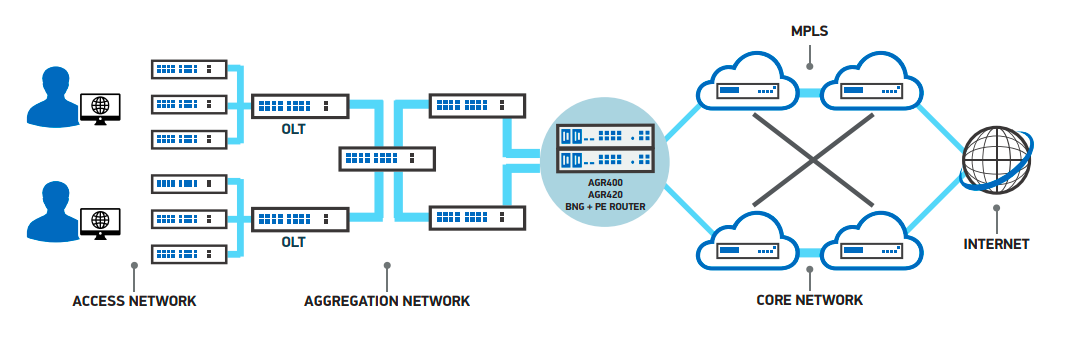

AGR Series for Large Centralized or Distributed Multi-service BNG Deployments

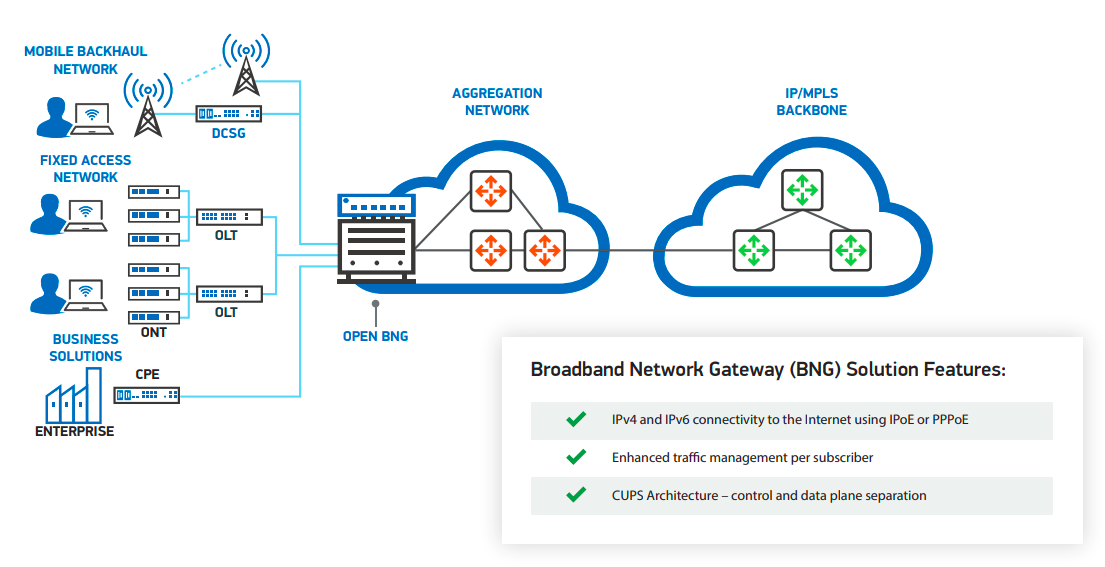

AGR series deployed in multiple BNG scenarios, supporting BNG, PE-router, and enterprise switch functionalities
Edgecore AGR100 Series

The Edgecore AGR100 series is based on the Broadcom Qumran-MX chipset and features 48 x 10G ports and 6 x 100G uplink ports, with a switching capacity of up to 800 Gbps. This series is designed with a high port density, an 8GB deep buffer, and 32GB SDRAM to support core, metro, and aggregation networks. The AGR100 series includes hardware options with TCAM and MACsec, and the full series supports SyncE and IEEE 1588v2 functions that are capable of fulfilling various network aggregation applications.

Product Name Interface Switching Capacity Switch Silicon CPU Highlights
AGR130
(AS5916-54XKS)
48x 10G, 6x 100G 800Gbps Broadcom Qumran-MX
BCM88375
Intel Broadwell-DE
D1548 8-core 2.2GHz
BCM52311TCAM
mSATA 128GB
8G Deep Buffer
DDR4 SO-DIMM 32GB
AGR120
(AS5916-54XM)
48x 10G, 6x 100G 800Gbps Broadcom Qumran-MX
BCM88370
Intel Broadwell-DE
D1548 4-core 2.2GHz
MACSec BCM82391
mSATA 128GB
8G Deep Buffer
NEBS3
AGR110
(AS5916-54XL)
48x 10G, 6x 100G 800Gbps Broadcom Qumran-MX
BCM88370
Intel Broadwell-DE
D1548 4-core 2.2GHz
8G Deep Buffer
NEBS3
AGR100
(AS5912-54X)
48x 10G, 6x 100G 800Gbps Broadcom Qumran-MX
BCM88370
Intel Rangeley
C2538 4-core 2.4GHz
High Port Density
Rich Partner Ecosystem
Edgecore AGR400 Series

The Edgecore AGR400 series is based on the Broadcom Qumran2C chipset and a robust server-grade 8-core Xeon processor with a BMC. The 2RU compact design has a high port density and 400G network interfaces, providing 2.4T packet processing that is ideal for carrier Ethernet, edge and core routing, OpenBNG, and other telecom applications.
The AGR400 series supports low power, scalable packet buffer memory, and various carrier features, including Ethernet OAM, MPLS, and segment routing for the most demanding carrier, campus, and cloud environments. This series includes hardware options with an external TCAM and external TAP chip, equipped with rich timing interfaces (1PPS, 10MHz, TOD), and full support for SyncE and IEEE 1588v2 timing profiles, which is ideal for any type of network aggregation.

Product Name Interface Switching Capacity Switch Silicon CPU Highlights
AGR400
(AS7946-30XB)
4x 400G, 22x 100G,
4x 25G / 10G / 1G
2.4Tbps Broadcom Qumran2C Intel Broadwell-DE
2.6GHz with BMC
4GB Deep Buffer
AGR420
(AS7946-74XKSB)
2x 100G (QSFP-DD)
8x 100G (QSFP28)
64x 25G / 10G / 1G
2.4Tbps Broadcom Qumran2C Intel Broadwell-DE
2.6GHz with BMC
External TCAM
