|  EXP100-32X

3.2T Data Center Switch

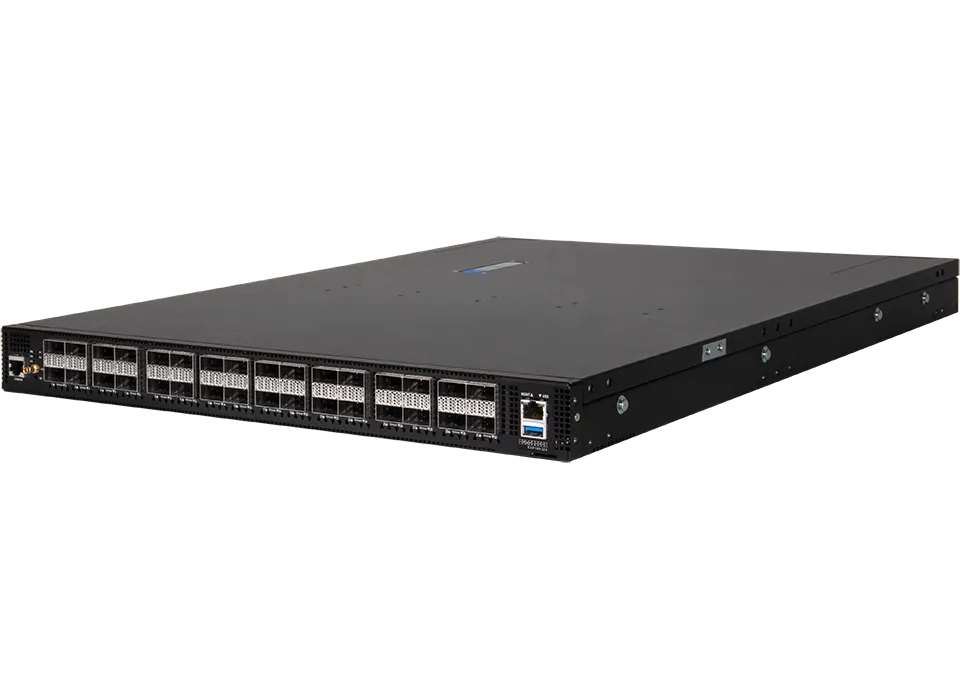

EXP100-32X

32 x 100G QSFP28 ports, each can breakout to 2 x 50G, 4 x 25G, or 4 x 10G.
High performance, low power, low latency, fully programmable SDN data center switch designed for data center, cloud, and AI networks.

Audi
AI/ML, Datacenter and Enterprise applications
Audi
Programmable data-plane
Audi
UEC Compatible
Audi
Low power
Audi
Fast link failure recovery
Audi
Rich telemetry
Audi
Advanced data-plane failure prediction
Audi
Lossless operation with PFC support

Overview

The Edgecore EXP100-32X is a high-performance, low-power, low-latency, fully-programmable SDN data center switch designed for data center, cloud, and AI networks.

Features

  • Supports 3.2 Tbps full-duplex throughput
  • Supports 125G NRZ SerDes with a retimer-less design

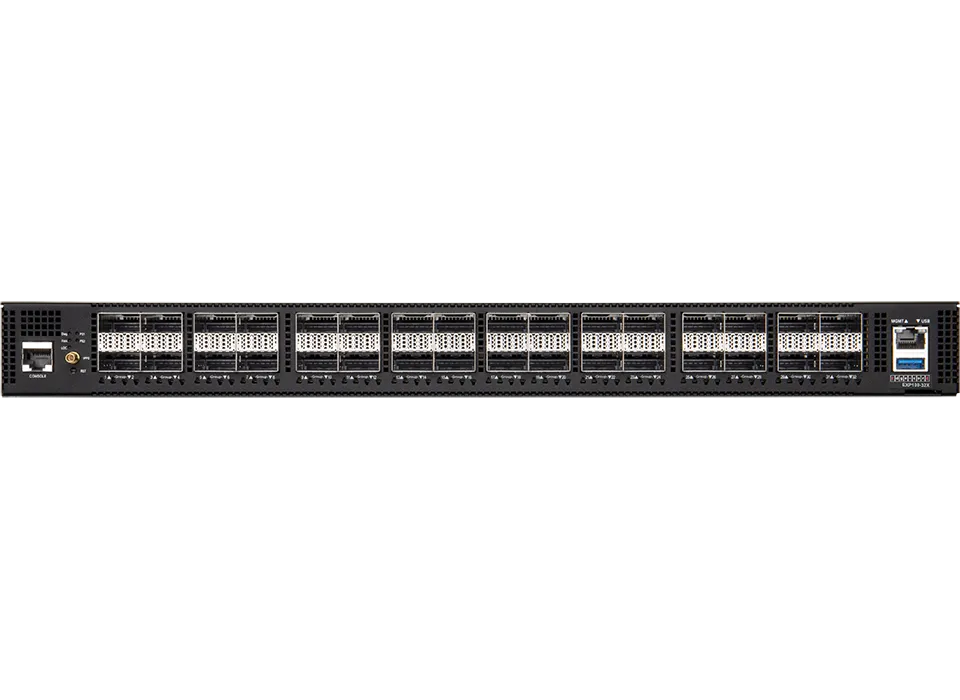

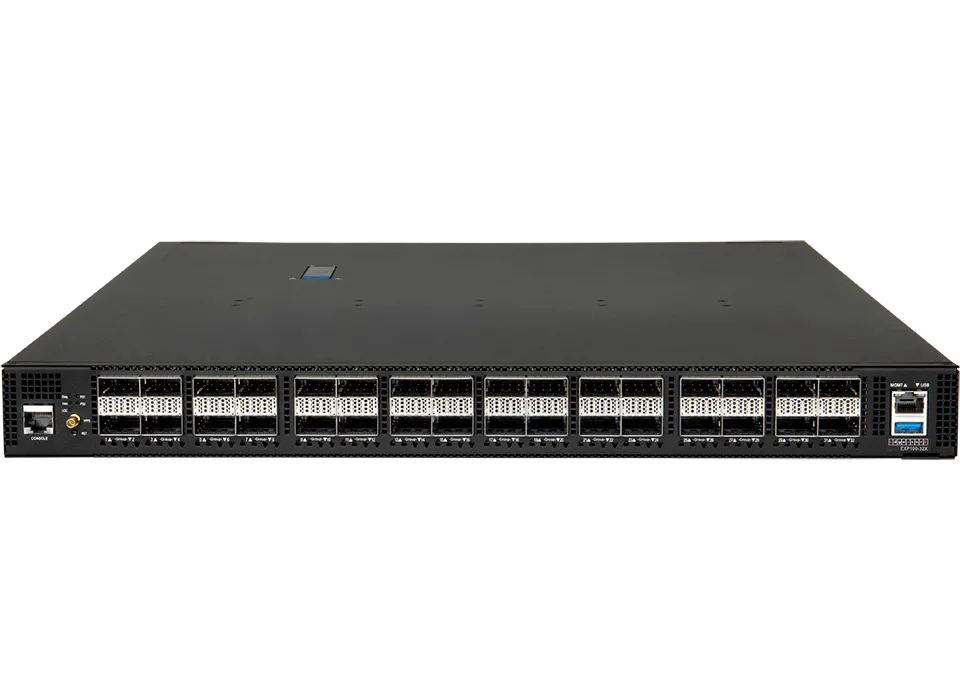

  • The 32 x 100G QSFP28 ports can breakout to 2 x 50G, 4 x 25G, or 4 x 10G
  • UEC-ready programmable congestion measurement and signaling to facilitate dynamic load balancing and fast failure detection and recovery
  • UEC-ready weighted congestion-aware dynamic load balancing for reducing tail latency
  • Support front to back airflow; PUSs and fans redundancy
  • Preloaded with ONIE, supports Xsight OS and Community SONiC
  • Fully Programmable

Specifications

Switch Ports 32 x QSFP28
Switch Silicon Xsight Labs X2
Processor Intel® Xeon® D-1713NTE 4-Core 2.2GHz
BMC Optional
Memory 32GB DDR4 SO-DIMM with ECC
Storage 1TB m.2 2280 NVMe SSD
Latency 755 ns
Rack 1 RU form factor
Timing and Sync Optional

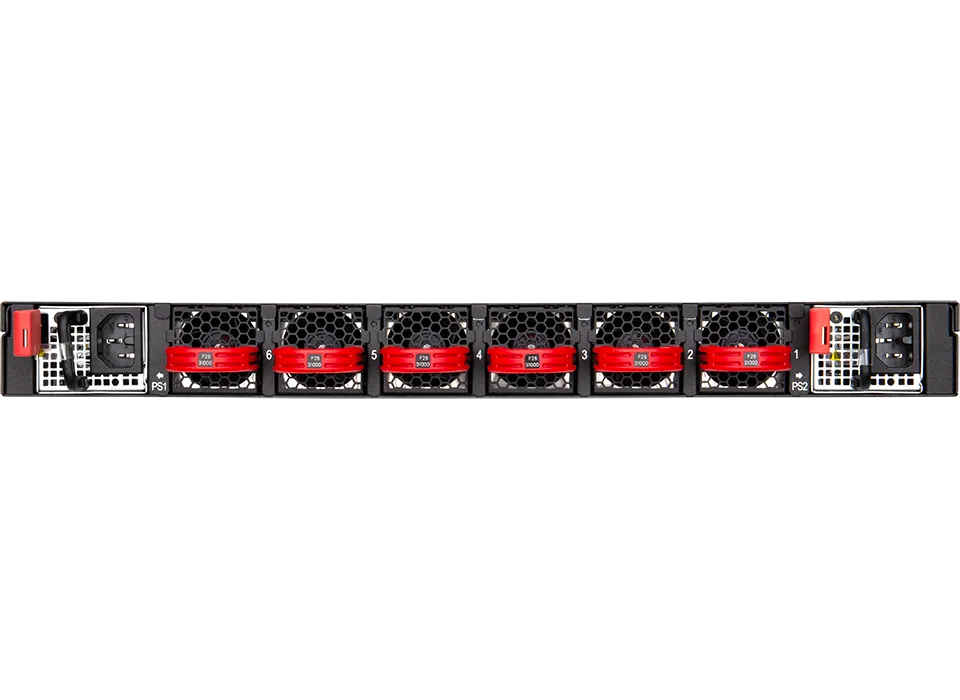

Fans 5+1 hot-swappable redundant fans front to back
Storage Temperature -40°C – 70°C (-40°F – 158°F)
Operating Temperature 0°C – 40°C (32°F – 104°F)
PSU 2 redundant, load-sharing, hot-swappable AC PSUs
Power Draw Maximum 863W

Compatible
Software Option

  • SONiC-PNOS

Compatible
Transceivers

  • 100G SR4
  • 100G LR4
  • 100G DR1
  • 100G FR1
  • 100G LR1

Compatible
Cables

  • 100G DAC
  • 100G AOC
