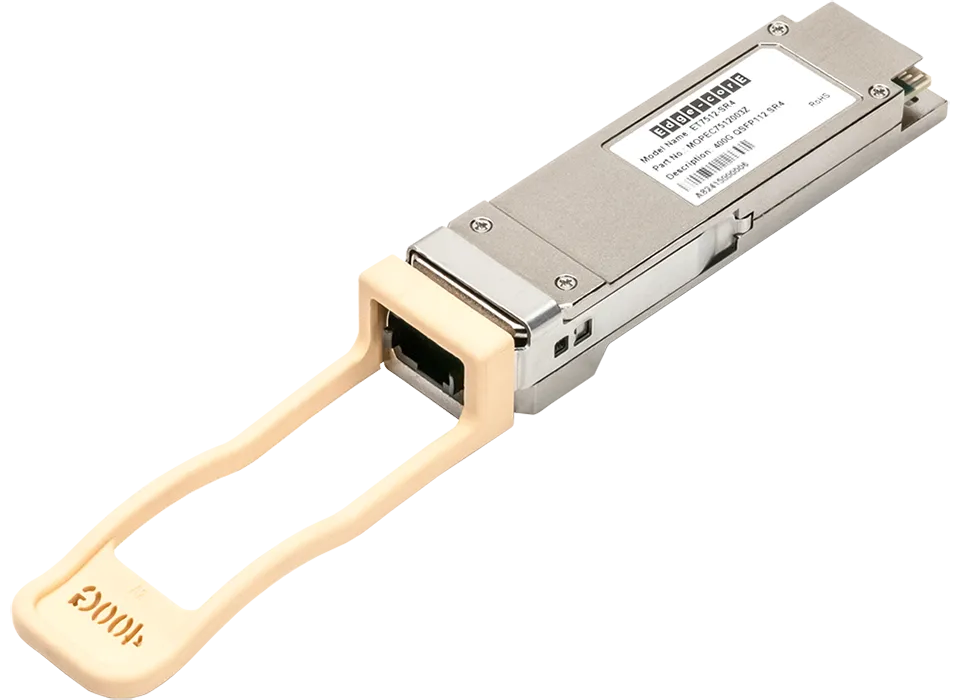

|  ET7512-SR4

400G QSFP112 SR4 50M TRANSCEIVER

ET7512-SR4

Edgecore’s ET7512-SR4 is designed to transmit and receive serial optical data at a rate of up to 106.25 Gbps (per channel) by PAM4 modulation over multimode fiber.

Overview

Edgecore’s ET7512-SR4 is designed to transmit and receive serial optical data at a rate of up to 106.25 Gbps (per channel) by PAM4 modulation over multimode fiber. The transceiver is a small-form-factor hot-pluggable module integrated with high-performance VCSELs. The device is compliant with 400G Ethernet specifications and the QSFP-DD MSA.

Features

  • Up to 106.25 Gbps data rate per channel by PAM4 modulation
  • 4 duplex channels transmitters and receivers
  • 4 × 100G PAM4 VCSEL
  • Single MPO-12 connector receptacle optical interface
  • Single +3.3 V power supply
  • DDM function implemented
  • Hot-pluggable QSFP112 form factor
  • Maximum link length of 50 m on MMF fiber
  • Low Power Dissipation: <8.5 W
  • International Class 1 laser safety certified
  • Operating Temperature Range: : 25℃ ~ +70℃
  • Compliant with RoHS6.0

Downloads

ET7512-SR4 Datasheet R01

Datasheet  1.8MB
