| ET7512-DR4
400G QSFP112 DR4 500M TRANSCEIVER
ET7512-DR4

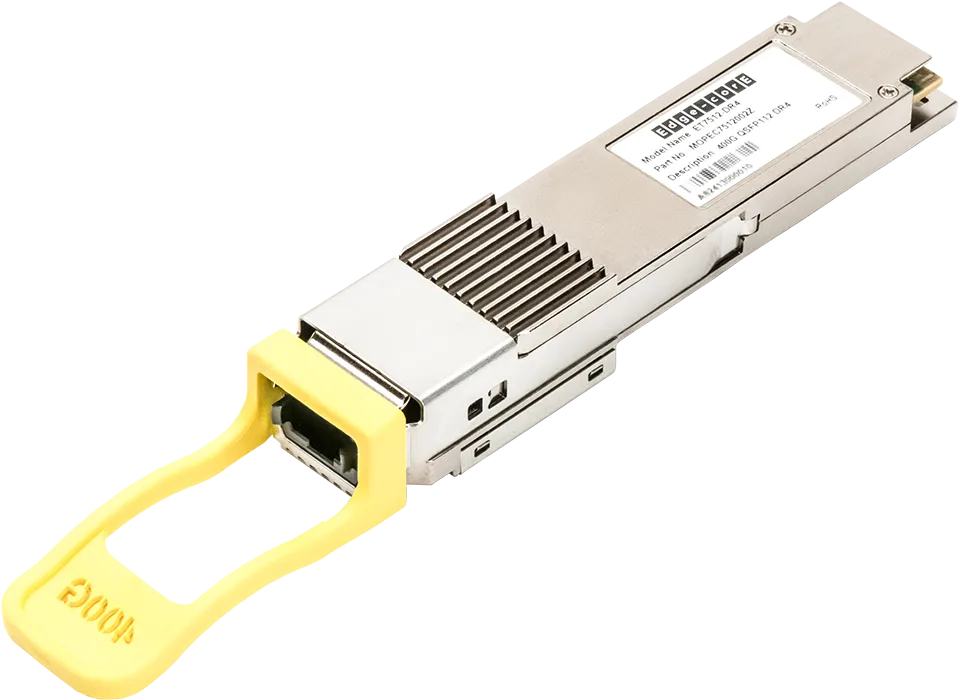

The Edgecore ET7512-DR4 is a high-performance 400G QSFP112 transceiver leveraging advanced SiP technology and 106.25 Gbps PAM4 modulation to deliver reliable, high-speed data interconnection over single-mode fiber.
Overview
Edgecore’s ET7512-DR4 is designed for high performance data interconnection. The transceiver provides a 106.25 Gbps data rate (per channel) by PAM4 modulation over single-mode fiber based on a high performance SIP modulator and PD detectors. The device is compliant with 400G Ethernet specifications and the QSFP112 MSA.
Features
- Up to 106.25 Gbps data rate per channel by PAM4 modulation
- 4 duplex channels transmitters and receivers
- 4 x 100G SIP modulator
- MPO-12 APC optical interface
- Single +3.3V power supply
- Hot-pluggable QSFP112 form factor (Type 2A)
- Maximum link length of 500 m on SM fiber
- Low Power Dissipation: <9 W
- Operating Temperature Range: 0℃ ~ +70℃
- International class 1 laser safety certified
- Compliant with RoHS6.0
