Enterprise  |  L3 Switches

  |  ECS4620-52P

L3 GIGABIT ETHERNET STACKABLE SWITCH

ECS4620-52P

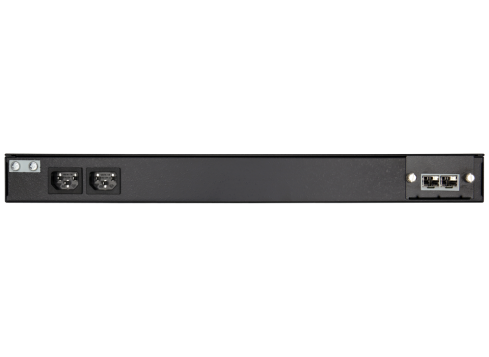

ECS4620-52P has with 1 x RJ45 console port, 1 x USB type A storage port, RPU connector and Stack up to 4 units. The PoE Budget is max. 780W. ECS4620 Series is a family of high-performance Gigabit Ethernet Layer 3 switches featuring 28 or 52 ports; with 24 /48 10/100/1000BASE-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot.

Overview

The Edgecore ECS4620 Series is a family of high-performance Gigabit Ethernet Layer 3 switches featuring 28 or 52 ports; with 24/48 10/100/1000BASE-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot. The switches are ideal for high-performance server aggregations, such as enterprise data centers, where they can connect high-end or network-attached files servers over fiber ports. They can also be deployed as a backbone upgrade, or to provide Gigabit–to-the-desktop for power users. These switches are packed with features and are a cost-effective solution that bring continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Features

  • Performance and Scalability – high-performance Gigabit Ethernet Layer 3 managed switches with 176 Gbps switching capacity.
  • Continuous Availability – The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
  • Comprehensive QoS – offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed.
  • Enhanced Security – with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), Private VLANs (traffic segmentation per port), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
  • Simple Management – An industry-standard command-line interface (CLI), accessed through the console port or Telnet, provides a familiar user interface and command set for users to manage the switch.
  • Support IPv4/v6 L3 Features

Compatible
Transceivers

  • 1000BASE SX/ LX/ EX/ ZX
  • 1000BASE-T RJ45
  • 10G SFP+

Compatible
Cables

  • 10G SFP+ DAC

  • 10G SFP+ AOC

Downloads

ECS4620_Safety and Regulatory Information-R07

Safety and Regulatory Information  746 KB

ECS4620-52P Quick Start Guide-R05

User Manual  1 MB

ECS4620 series DS R06

Datasheet  3 MB

ECS4620-52P FW_V1.2.2.49

Firmware  18 MB
