Enterprise  |  L2 Switches

  |  ECS4100-12PH

L2+/L3 LITE UPOE GIGABIT ETHERNET ACCESS SWITCH

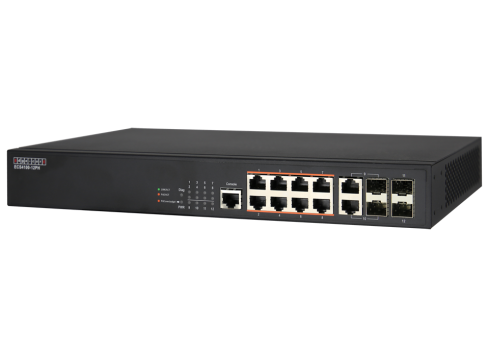

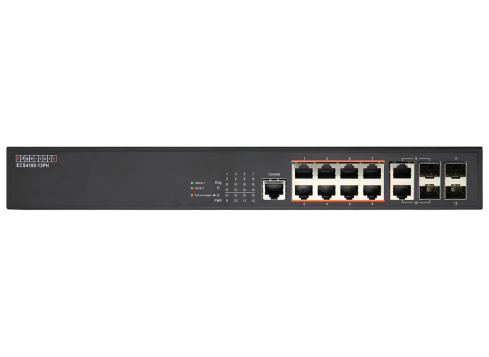

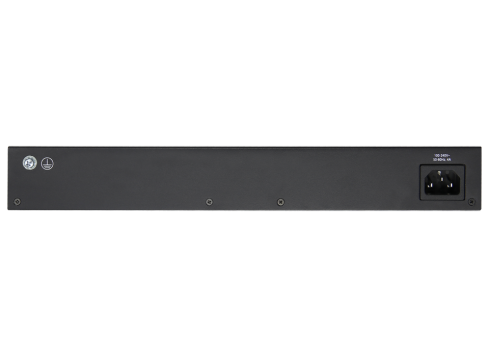

ECS4100-12PH

ECS4100-12PH switch is an 8-port PoE Gigabit Ethernet access switch with 2 combo and 2 FE/1G uplink SFP ports. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services and up to a Gigabit of bandwidth. (For particular selected territories only)

Overview

The Edgecore ECS4100-12PH switch is an 8-port PoE Gigabit Ethernet access switch with 2 combo and 2 FE/1G uplink SFP ports. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services and up to a Gigabit of bandwidth. The PoE function can be used to connect to WiFi APs for a hotspot service, or to connect to IP surveillance devices. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks connect to IP phones, WiFi APs, and IP surveillance cameras. The ECS4100-12PH switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advanced QoS to the network edge, while maintaining simple management. The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. This is the first Edgecore PoE switch that supports up to 60 W Ultra PoE IEEE 802.3bt.

Features

  • Performance and Scalability with 24 Gbps switching capacity
  • Continuous Availability – IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol and IEEE 802.3ad Link Aggregation Control Protocol (LACP).
  • Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
  • Enhanced Security with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
  • Simple Management with an idustry-standard command-line interface (CLI)
  • Green Ethernet
  • Cloud Management – ecCLOUD

Compatible
Transceivers

  • 1000BASE SX/ LX/ EX/ ZX
  • 1000BASE-T RJ45

Downloads

ECS4100 Series Safety and Regulatory Information-R03

Safety and Regulatory Information  661 KB

ECS4100 Series Quick Start Guide-R03

User Manual  866 KB

ECS4100-12PH R02

Datasheet  5 MB

ECS4100-12PH_V1.2.77.212

Firmware  12 MB
