Service Provider  |  Fixed Broadband Access

  |  ASXvOLT16

OPEN XGS-PON OLT

ASXvOLT16

ASXvOLT16
16 x 10G XGS-PON ports
Open XGS-PON OLT for next generation open network

Key Features

Audi
5G Backhaul Access
Audi
IEEE 1588v2 PTP w/SyncE
Audi
FTTx Applications for Enterprises
Audi
Compact Design

Overview

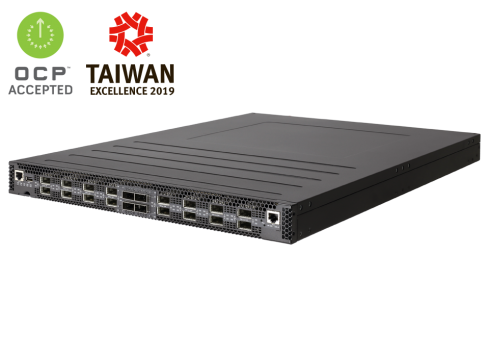

ASXvOLT16 is a 16 port 10G XGS-PON virtual Optical Line Terminal (vOLT) with 4 fixed 40/100G QSFP28 uplink ports capable of breaking out to 4 x 25/10G. All interfaces are able to be accessed from the front panel. All 10G XGS-PON ports are able to operate at line rate by default and support transceivers meeting 10G XGS-PON standards. This vOLT platform supports redundant hot-swappable PSUs and fans, and is available with a front-to-back airflow direction. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System (NOS) soſtware, including the open source plus commercial NOS offerings.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Features

  • 4 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables 2 x 50 GbE, 4 x 25 GbE, or 4 x 10 GbE
  • Layer 2 or Layer 3 forwarding at 300 Gbps (full duplex).
  • Supports hot/cold aisles with front-to-back airflow SKU.

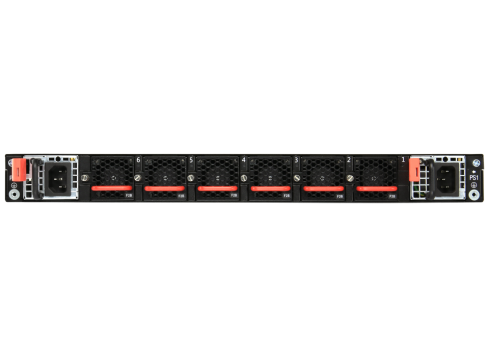

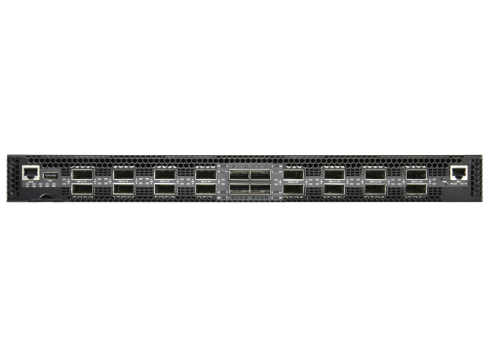

  • All ports on front; PSUs and fans accessible from rear.
  • Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
  • 5+1 redundant, hot-swappable fan modules.
  • Handles the abstraction between the protocol and the native hardware RPC.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Compatible
Software Option

  • CapGemini SDvAS
  • IP Infusion OcNOS™
  • Netsia SEBA+
  • STL pFTTx

Compatible
Transceivers

  • XGSPON Class N2

Downloads

ASXvOLT16 DS R06

Datasheet  3 MB

ASXvOLT16 Safety and Regulatory Information R01

Safety and Regulatory Information  717 KB

ASXvOLT16 Quick Start Guide-R01

User Manual  1 MB
