Cloud Data Center  |  1G

  |  AS4610-30T

104G ENTERPRISE SWITCH

AS4610-30T

AS4610-30T
24 x 1G RJ45, 4 x 10G, 2 x 20G switch ports with Helix 4.
Open network switch for enterprise, campus and data center fabric

Audi
Cost-effective

Overview

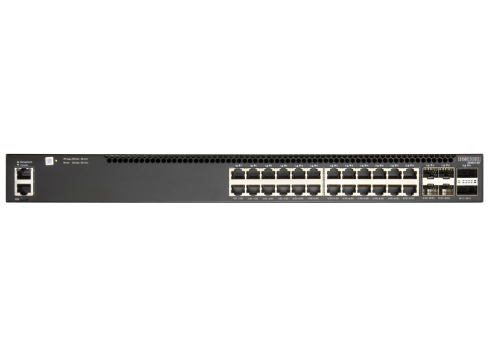

The Edgecore AS4610-30T is a high-performance Gigabit Ethernet Layer 3 switch featuring 30 ports; with 24 10/100/1000BASE-T ports, 4 x 10G SFP+ uplink ports, and 2 x 20G QSFP+ stacking ports (stacking capability subject to NOS implementations). The AS4610-30T is ideal for enterprise or campus networks deploying open network solutions, it includes redundant hot-swappable AC PSUs and port-to-power airflow. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS offerings.

Features

  • Cost-effective, open network switch for enterprise, campus and data center fabric.
  • 1 GbE connections to server and storage nodes in rack, with 10 GbE uplinks to spine network.
  • 24 x 10/100/1000BASE-T RJ-45 ports.
  • 4 x SFP+ uplink ports, supporting 10 GbE (DAC, 10GBASE-SR/LR/ER/LRM) or 1 GbE (1000BASE-T/SX/LX).
  • Full line-rate L2 or L3 forwarding and switching.
  • Hot-swappable, load-sharing, redundant AC PSUs.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings

Compatible
Software Option

  • Pica8 – PicOS

  • BISDN Linux

Compatible
Transceivers

  • 10G SFP+

  • 1000BASE SX/LX /EX/ZX (I-temp)
  • 1000BASE SFP
  • 1000BASE RJ45 ( I-temp )

Downloads

AS4610-30T R09

Datasheet  1 MB

AS4610-30T Safety and Regulatory Information-R03

Safety and Regulatory Information  1 MB

AS4610-30T Quick Start Guide-R02

User Manual  2 MB
