  |  WEDGE100S-32X

100GBE DATA CENTER SWITCH

WEDGE100S-32X

The Edgecore Wedge100S-32X is a commercial product based on Facebook’s Wedge100S design. Facebook designed the Wedge100S as a 32 x 100 GbE top-of-rack switch optimized for web-scale data centers, and submitted the design to the Open Compute Project.

Wedge100S-32X Warranty Support Period: 3 years

The product has completed the End of Life (EOL) process effective on January 31st, 2021

For more details, please refer to item #8 in the Product Warranty Statement.

Overview

The Edgecore Wedge100S-32X is a commercial product based on Facebook’s Wedge100S design. Facebook designed the Wedge100S as a 32 x 100 GbE top-of-rack switch optimized for web-scale data centers, and submitted the design to the Open Compute Project. Edgecore’s parent company, Accton Technology, performed the design validation for Facebook and manufactures the Wedge100S for Facebook’s deployment. Edgecore now offers the Wedge100S as a fully supported commercial product to enable network operators to increase capacity with 25 G and 100 G networking.

The Wedge100S switch provides 32 QSFP28 ports that can each run at 100 GbE/40 GbE, or as 4 x 25 GbE/ 4 x 10 GbE/2 x 50 GbE through breakout cables. The Wedge100S design is based on the Broadcom BCM56960 Tomahawk 3.2 Tbps switch silicon. The Wedge CPU subsystem is the COM-E CPU module, based on the Intel Xeon Broadwell-DE D1508 processor. The use of this standard CPU system, coupled with the BMC (Baseboard Management Controller) on the Wedge main board, enables the Wedge100S to be provisioned and managed using similar tools used by data center operators for their server and application environments.

Features

  • Bare-metal TOR switch for data center fabric.
  • Open hardware design contributed by Facebook to the Open Compute Project.
  • Compatible with a 19” rack, or a 21” Open Rack using the Open Rack Switch Adapter.
  • 32 x QSFP28 ports in a compact 1RU form factor.
  • Each port supports 1 x 100 GbE/40 GbE, or 4 x 25 GbE/4 x 10 GbE/2 x 50 GbE via breakout cables.
  • Line-rate Layer 2 or Layer 3 forwarding of 3.2 Tbps full duplex.
  • Hot-swappable, load-sharing, redundant AC PSUs or 12 V DC PSUs.

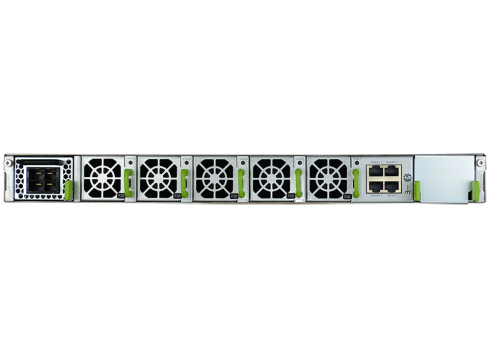

  • 4+1 redundant, hot-swappable fans.
  • Front-to-back airflow.
  • Console, management, and USB ports on switch ports side.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Compatible
Software Option

  • Open Network Linux (ONL)
  • Open-source FBOSS Agent software

Downloads

WedgeS 100-32X R01

Datasheet  217 KB
