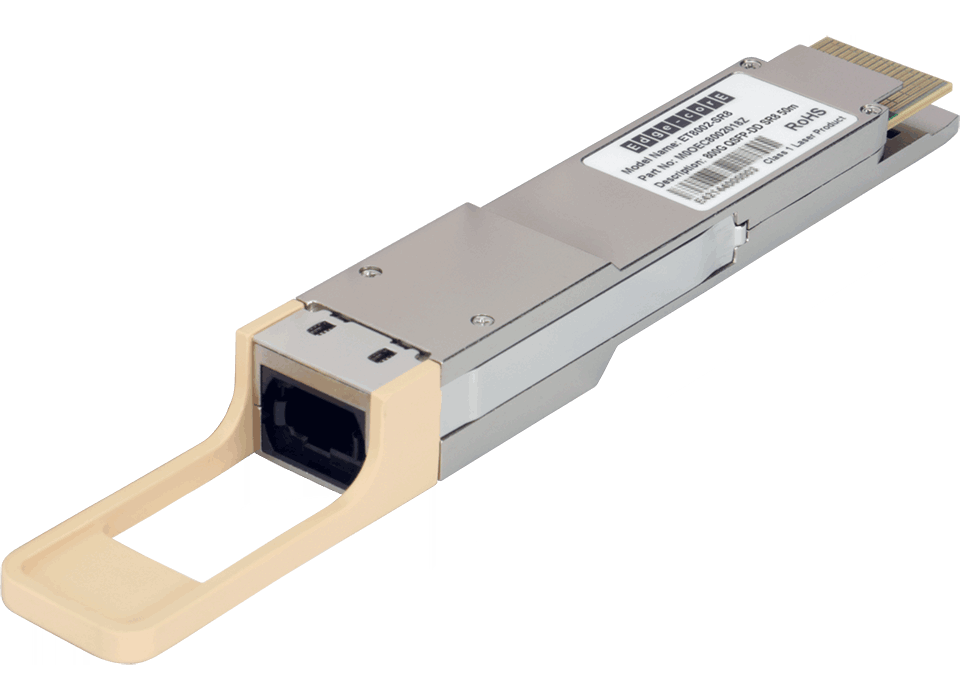

|  ET8002-SR8

800G QSFP-DD SR8 50m Transceiver

ET8002-SR8

The ET8002-SR8 is an 800G QSFP-DD SR8 transceiver designed to transmit and receive serial optical data up to 106.25 Gbps data rate (per channel) by PAM4 modulation over multimode fiber. It is a small-form-factor hot-pluggable transceiver module integrated with a high-performance VCSEL laser and high-sensitivity PIN receiver. It is compliant with 800G Ethernet and the QSFP-DD MSA.

Overview

The ET8002-SR8 is an 800G QSFP-DD SR8 transceiver designed to transmit and receive serial optical data up to 106.25 Gbps data rate (per channel) by PAM4 modulation over multimode fiber. It is a small-form-factor hot-pluggable transceiver module integrated with a high-performance VCSEL laser and high-sensitivity PIN receiver. It is compliant with 800G Ethernet and the QSFP-DD MSA.

■ 800GBASE Ethernet
■ Switch and router connections
■ Data centers
■ Other 800G interconnect requirements

Features

  • Up to 106.25 Gbps data rate per channel by PAM4 modulation on media side
  • Up to 106.25 Gbps data rate per channel by PAM4 modulation on host side
  • MPO-16 APC optical interface
  • Single +3.3V power supply
  • DDM function implemented
  • Hot-pluggable QSFP-DD form factor
  • Maximum link length of 50M on OM4 MMF
  • Power dissipation: <16 W
  • International Class 1 laser safety certified
  • Operating temperature range: 25℃ ~ +70℃
  • Compliant with ROHS2.0

Downloads

ET8002-SR8 Datasheet R01

Datasheet  954KB
