Enterprise | L2 Switches
| ECS5500-12T
L2+/Lite L3 10G Multi-Gigabit Ethernet Switch
ECS5500-12T

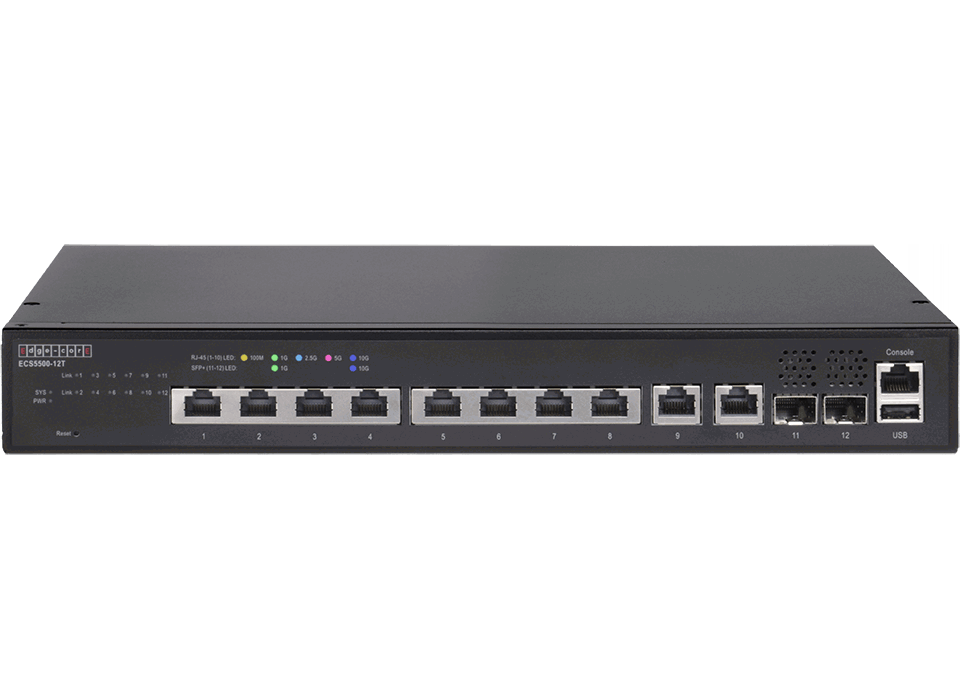

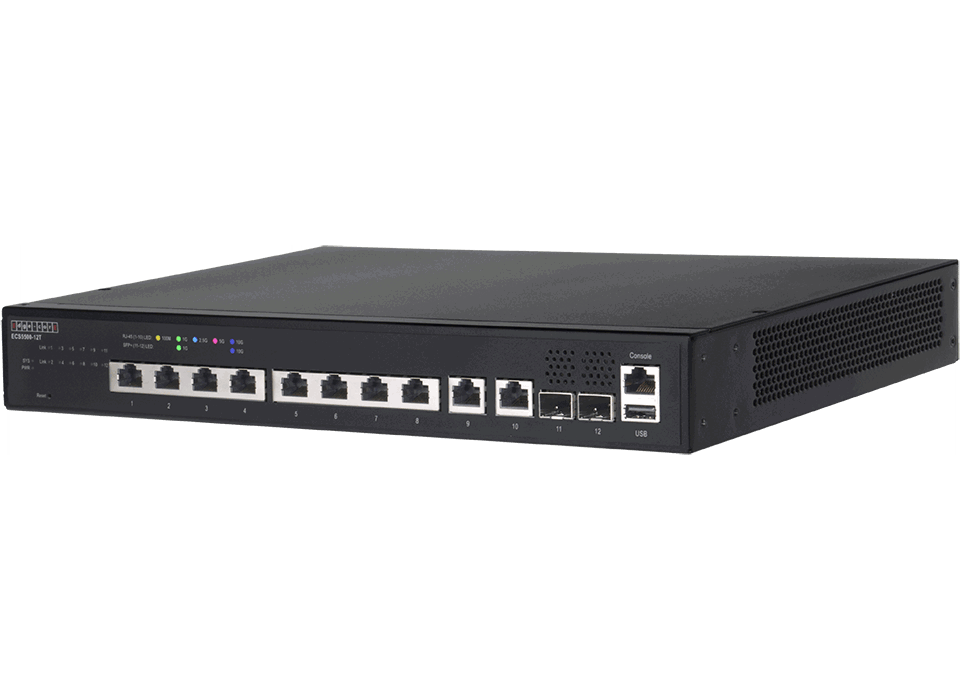

The Edgecore ECS5500-12T switch is a 10G Ethernet access switch with 8 x 10GBASE-T ports and 2 x 10G SFP+/2 x 10GBASE-T as uplink ports. The switch is ideal for SMB networks as a core switch.
Overview
The Edgecore ECS5500-12T switch is a 10G Ethernet access switch with 8 x 10GBASE-T ports and 2 x 10G SFP+/2 x 10GBASE-T as uplink ports. The switch is ideal for SMB networks as a core switch. This switch is also positioned as cloud-edge access switch to connect IOTs and other devices in Enterprises and SMB deployments. It is also an ideal 10G access switch for SMB, enterprise, and campus networks, especially with its multi-Gig support for different 100M/1G/2.5G/5G/10G speed LAN devices. The ECS5500-12T is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
Features
- High-performance 10G Layer 2+ / Lite L3 managed switch with 240 Gbps switching capacity
- Supports 100M/1G/2.5G/5G/10G Ethernet for flexible deployment

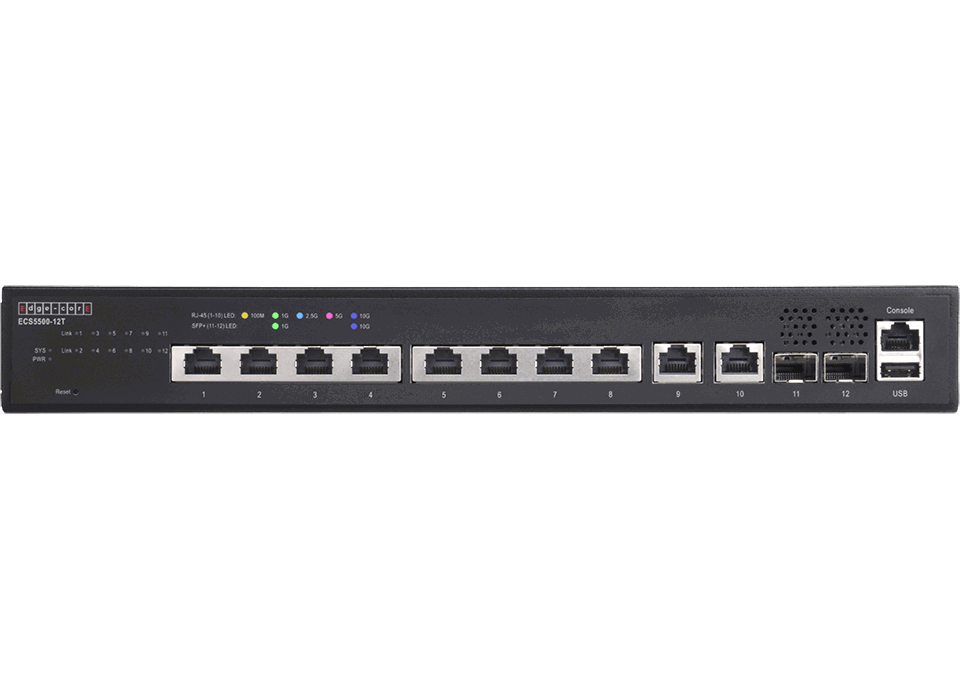

- 8 x 10GBASE-T ports and 2 x 10G SFP+/2 x 10GBASE-T uplink ports for flexible connectivity options (fiber or copper)
- Dual hot-swappable power supplies with optional second AC or DC power module for redundancy
- Continuous Availability – Supports MLAG, Rapid Spanning Tree Protocol (RSTP), MSTP, and Link Aggregation (LACP)
- 6KV surge protection for enhanced reliability in harsh environments
- Enhanced Security – Port Security, 802.1X access control, DHCP Snooping, ACLs, SSH/SSL for secure management
- Comprehensive QoS – Traffic prioritization using 802.1p, DSCP, WRR, and strict priority scheduling
- Multicast Control – IGMPv1/v2/v3 Snooping, IGMP Filtering, Multicast VLAN Registration (MVR)
- IPv6 Support – IPv6 management, DHCPv6 Snooping, IPv6 Source Guard
- Simple Management – CLI, Web GUI, SNMPv1/v2/v3 with private MIB for easy configuration
