|  ECPO-QDDZRP400G

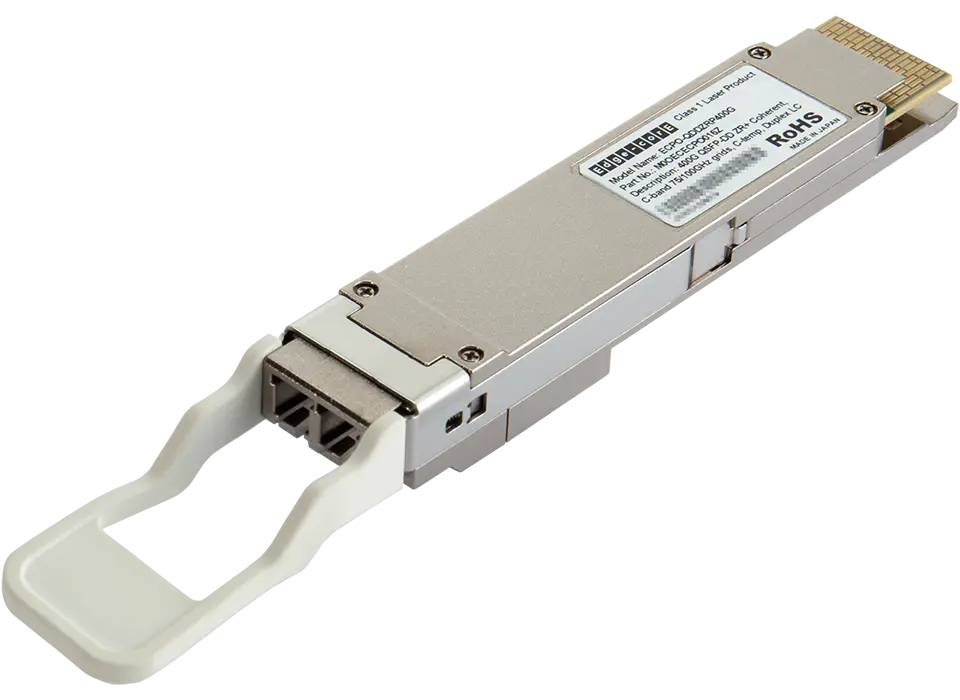

400G QSFP-DD ZR+ COHERENT TRANSCEIVER

ECPO-QDDZRP400G

The ECPO-QDDZRP400G is a 400Gbps tunable DWDM DP-16QAM, 200G DP-QPSK, 100G DP-QPSK coherent transceiver supporting 400ZR / ZR+ / OpenZR+ applications.

Overview

The ECPO-QDDZRP400G is a 400Gbps tunable DWDM DP-16QAM, 200G DP-QPSK, 100G DP-QPSK coherent transceiver supporting 400ZR / ZR+ / OpenZR+ applications. It is implemented in an MSA-compliant QSFP-DD Type-2 hot-pluggable form factor with integrated digital diagnostic monitoring (DDM) and full control functions. Designed for medium- to long-reach WDM transmission links, the module provides an interoperable and cost-effective coherent transmission solution across the full C-band (OIF Type-1 coherent pluggable).

Features

  • Full C-band tunability supporting 75 / 100 GHz channel spacing for 400Gbps DWDM coherent transmission
  • Coherent optical transmitter and receiver integrated in an MSA-compliant QSFP-DD Type-2 hot-pluggable form factor
  • Single-carrier ~60-GBaud DP-16QAM, 200G DP-QPSK, 100G DP-QPSK modulation format
  • Supports OIF-defined concatenated FEC (C-FEC) for 400ZR / ZR+ / OpenZR+ applications
  • Maximum power consumption 20 W, typical < 18 W
  • Operating case temperature range: 0°C to +70°C
  • Compliant with OIF-400ZR implementation agreement and supporting QSFP-DD CMIS Rev. 5.0 management interface
  • Duplex LC optical connector interface
  • RoHS compliant

Downloads

ECPO-QDDZRP400G DS R01

Datasheet  3 MB
